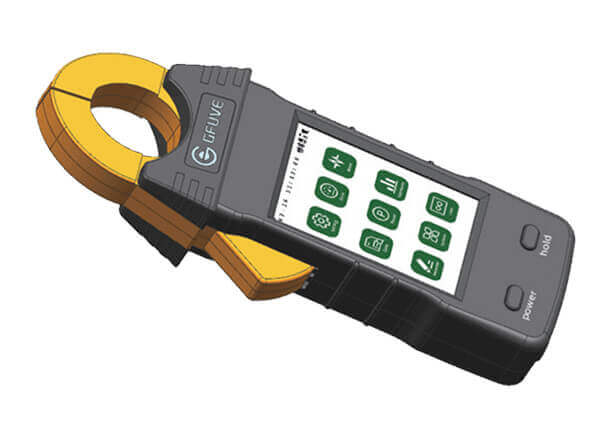

GF112R Clamp On Power Data Logger
GF112R clamp on power data logger is a high precision industrial clamp on power meter in accuracy class 0.05, used for testing all electrical parameter - voltage, current, active power, reactive power, apparent power, harmonics, phase angle, power factor, frequency, energy etc on site. Wide measurement range from up to 600A and 720V, 2-31st harmonics measurement, clamp type industrial design, with 3.5 inch touch TFT color LCD, bluetooth and USB, Power data logger can be set from 1s to 60minutes.
GF112R clamp power data logger have become popular tools primarily for field electrical engineer.
Quick Links: Download Catalogue
Application
- Electricity Power Utilities;
- Distribution power corporation;
- Power engineering company;
- Oil, gas, petrochemical company;
- Power plant;
- Solar power plant;
- Electrical department of industrial and mining enterprises;
- Metrological service center;
- Electrical laboratory;
- Factory;
- Power quality check department;
Features
- Wide measuring range 0-720V/0.001-600A;
- Power accuracy class 0.05;
- Easy and user friendly operation;
- 3.5 inch color touch TFT LCD;
- 2-31st Harmonics measurement;
- Recorder time interval from 1s to 60 minutes;
- Recorder all kinds of electrical parameters;
- Measure U, I, P, Q, S, E, PF, frequency etc;
- Oscilloscope function display current & current wave;
- Display of vector diagram;
- One screen displays all the measured parameters;
- Automatic compensation for current clamp;
- The meter and current clamp have Integration design;
- Storage 20000 groups calibrate data;
- Low power design technology;
- Unique long-term and temperature stability;
- Lithium batteries/3AAA can be replaced;
- The Li-battery can work 48 hours continuously;
- Recorder data can be download by U disk;
- With bluetooth & USB communication port;
- With APP software, export test report;
Parameters
| Electrical parameters | |
|---|---|
| Accuracy class | 0.05% |
| Power supply | AAA type, 3PCS, Li rechargeable battery, 2700mAh, 3.6V it can work 48 hours continuously |
| Warming-up time | <2min |
| Voltage measurement | |
| U Range | 0-720V |
| Accuracy | 0.05% |
| Harmonics | 2nd-31st |
| Current measurement | |
| I Range | 1mA-120A or 0mA-600A |
| Accuracy | 0.05% |
| Harmonics | 2nd-31st |
| Phase measurement | |
| Range | 0.00°-359.99° |
| Resolution | 0.01° |
| Accuracy | 0.05° |
| Power measurement | |
| Range | 0-72KV or 0-360kW |
| Accuracy | 0.05% |
| Frequency measurement | |
| Range | 40-70Hz |
| Resolution | 0.001Hz |
| Accuracy | 0.002Hz |
| Power Factor Measurement | |
| Range | -1 ~ 0 ~ 1 |
| Resolution | 0.0001 |
| Accuracy | 0.0002 |
| Harmonics | |
| Harmonics order | 2-31 times |
| Harmonics content | Yes, 0-100% |
| Harmonics bar graph | Yes |
| Function | |
| Key | 2pcs (hold, power) |
| Register test | Yes |
| PC management software | Yes |
| Android APP | Optional |
| LCD | 3.5 inch touch TFT color LCD |
| RMS | Yes |
| Waveform measurement | Yes |
| Recorder parameter | U, I, P, Q, S, F, PF, Phase angle |
| Recorder time interval setting | 1s - 60minutes |
| Data storage | 20000 sets |
| Communication port | USB & bluetooth port |
| Standard | |
| Standard | IEC61010-1, IEC61010-2-32, IEC61010-2-31, IEC60529, pollution grade 2, 600V CAT IV, EN/IEC 61326; IEC 61000-4-30; IEC 61000-4-7, IEEE 519; IEC 61000-4-15; IEEE 1459; EN 50160 |
| Safety | |
| Isolation protection | IEC 61010-1:2001 |
| Measurement category | 600V CAT IV |
| Degree of protection | IP50 |
| Declaration of conformity | CE & UL, CNAS certified |
| Mechanical parameters | |
| Dimension (L×W×H)(mm) | 225×61×38, 235×61×38 Aperture of current clamp: 30mm or 50mm |
| Weight (kg) | 0.35 or 0.5 (mains) 1 or 1.5 (accessory and box) |
| Environmental conditions | |
| Working temperature | -10°C to 55°C |
| Working humidity | 5%-85%RHD |
| Storage temperature | -25°C to 70°C |
| Storage humidity | 5%-95%RHD |
