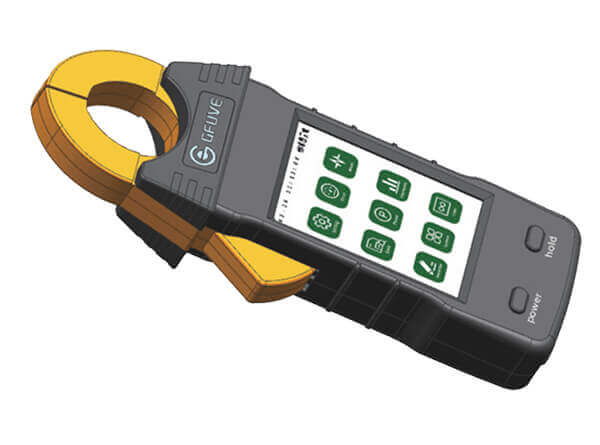

GF112L Leakage Current Data Logger And Leakage Current Tester
GF112L leakage current tester is a high precision industrial handheld clamp on current meter in accuracy class 0.05 with data logger function, recording time interval from 1s to 60 minutes, used for testing all electrical parameter and recorder RMS current value on site. It can help users detect, document, record and compare leakage current readings over time as a means of preventing unplanned downtime, and identifying intermittent GFCI and RCD trips, all without taking equipment off line. Wide measurement range from up to 120A and 720V, and also can be used to test voltage, leakage current, active power, reactive power, apparent power, harmonics, phase angle, power factor, frequency, energy etc. 2-31st harmonics measurement, clamp type industrial design, with 3.5 inch touch TFT color LCD, bluetooth and USB. GF112L clamp leakage current tester have become popular tools primarily for all kinds of electrical department. It can display all the value via wireless technology in APP software.
Application
- Electricity power bureau & power company;
- Distribution power corporation;
- Power engineering company;
- Oil, gas, petrochemical company;
- Power plant;
- Electrical Department of industrial and mining enterprises;
- Maintenance electrical engineer;
- Electrical laboratory;
- Factory;
- Electrical cabinet manufacturer;
- Power quality check department;
Features
- Wide measuring range 0-720V/0-120A;
- Power accuracy class 0.05;
- Easy and user friendly operation;
- 3.5 inch color touch TFT LCD;
- Recorder time interval from 1s to 60 minutes;
- 1mA leakage current accuracy measurement;
- Measure U, I, P, Q, S, E, PF, frequency etc;
- Oscilloscope function display current & current wave;
- One screen displays all the measured parameters;
- Automatic compensation for current clamp;
- The meter and current clamp have Integration design;
- Storage 20000 groups test data;
- Unique long-term and temperature stability;
- Lithium batteries/3AAA can be replaced;
- The Li-battery can work 48 hours continuously;
- Recorder data can be download by U disk;
- With bluetooth & USB communication port;
- With APP software, export test report;
Parameters
| Electrical parameters | |
|---|---|
| Accuracy class | 0.05% |
| Power supply | AAA type, 3PCS, Li rechargeable battery, 2700mAh, 3.6V it can work 48 hours continuously |
| Warming-up time | <2min |
| Voltage measurement | |
| U Range | 0-720V |
| Accuracy | 0.05% |
| Harmonics | 2nd-31st |
| Current measurement | |
| I Range | 1mA-120A |
| Accuracy | 0.05% |
| Harmonics | 2nd-31st |
| Phase measurement | |
| Range | 0.00°-359.99° |
| Resolution | 0.01° |
| Accuracy | 0.05° |
| Frequency measurement | |
| Range | 40-70Hz |
| Resolution | 0.001Hz |
| Accuracy | 0.002Hz |
| Power Factor Measurement | |
| Range | -1 ~ 0 ~ 1 |
| Resolution | 0.0001 |
| Accuracy | 0.0002 |
| Harmonics | |
| Harmonics order | 2-31 times |
| Harmonics content | Yes, 0-100% |
| Harmonics bar graph | Yes |
| Function | |
| Key | 2pcs (hold, power) |
| PC management software | Yes |
| Android APP | Optional |
| LCD | 3.5 inch touch TFT color LCD |
| RMS | Yes |
| Waveform measurement | Yes |
| Recorder parameter | U, I, P, Q, S, F, PF, phase angle |
| Recorder time interval setting | 1s - 60minutes |
| Data storage | 4M data logger, 20000 sets data |
| Communication port | USB & bluetooth port |
| Standard | |
| Standard | IEC61010-1, IEC61010-2-32 CAT III 600 V / CAT IV 300 V, IEC61010-2-31, IEC60529, pollution grade 2, EN/IEC 61326; IEC 61000-4-30; IEC 61000-4-7, IEEE 519; IEC 61000-4-15; IEEE 1459; EN 50160 |
| Safety | |
| Isolation protection | IEC 61010-1:2001 |
| Measurement category | 600V CAT IV |
| Degree of protection | IP50 |
| Declaration of conformity | CE & UL, CNAS certified |
| Mechanical parameters | |
| Dimension (L×W×H)(mm) | 225×61×38 Aperture of current clamp: 30mm or 50mm |
| Weight (kg) | 0.35 (mains) 1 (accessory and box) |
| Environmental conditions | |
| Working temperature | -10°C to 55°C |
| Working humidity | 5%-85%RHD |
| Storage temperature | -25°C to 70°C |
| Storage humidity | 5%-95%RHD |
