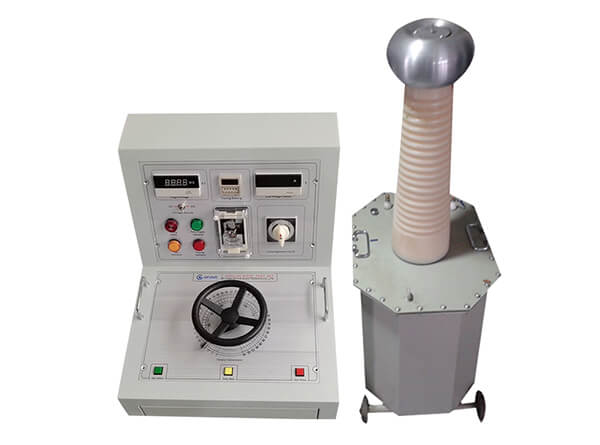

T-100KV ac dc hv hipot test set
T-100KV hv hipot test set is the effective and direct way to test insulation strength for electric equipment, apparatus or machines. It checks dangeous flaws which assure electric equipment continuous working. Typical applications include testing of transformers, switchgears, cables, capacitors, aerial motors platforms, hot sticks bucket bricks, vacuum bottles and other related equipment like vacuum interrupters, blankets, ropes, gloves, hydraulics hose, instruments transformers generators.
Quick Links: Download Catalogue
Application
- Cable joints/splices
- Power cables
- Switchgear (air, gas, oil)
- Bushings
- Transformers, shunt reactors
- Instrument transformers
- Lightning arrestors
- Insulation materials (oil, paper)
- Connectors
- Power capacitors
- HV components
- Circuit breakers
- Coils
- Fuses
- Insulators
Function & Features
- 0-100KV AC/DC output.
- Voltage accuracy 1%.
- Digital display panel mounted controls & indicators with easy to read legend.
- Monitoring high voltage side voltage, low voltage side current and indicator of zero, power, working start, timer.
- Over-current protection, zero-starting protection, sound and light alarm.
- Continuously variable output from zero to full voltage.
- Adjustable over current protection, with trip levels variable from 10 to 110%.
- With new type time relay, time rang is more wider (1S~99H).
- Using the latest current relay, more accurate and reliable.
- Light weight, small size, easy to move.
Parameters
| Electrical parameters | |
|---|---|
| Power supply | AC 230V±10% or 380V±10%, 50/60Hz AC |
| AC voltage output | 0-100KV |
| DC voltage output | 0-140KV |
| AC current output | 100mA |
| DC current output | 70mA |
| Accuracy | 1% |
| Capacity | 10KVA, customized (1kVA-100KVA) |
| Frequency | 50Hz/60Hz |
| Adjustment component | Voltage regulator |
| Display model of voltage | Digital meter |
| Accuracy class of the voltage meter | 0.2% |
| Adjustment model | Manual or auto |
| Timer range | 0.01S-99.99H |
| Protection function | Over-current |
| Cooling model | Self-cooled |
| Testing transformer | Oil, dry, SF6 gas optional |
| Output voltage of control unit | AC 0-250V or 0-430V |
| Standard | GB/T15290, GB/T8554, GB/T16927, DL/T848, DL/T846, IEC61007, IEC60060, IEC60270, IEC 60243-1, ASTM D149 |
| Mechanical parameters | |
| Dimension (L×W×H)(mm) | 650x600x750, 450x500x650 |
| Weight (kg) | 125+54 |
| Environmental conditions | |
| Operating temperature | -20°C to 50°C |
| Storage temperature | -40°C to 70°C |
| Relative humidity | ≤85%RH |
