GF112W Laboratory High Precision Digital Watt Meter

Laboratory digital watt meter

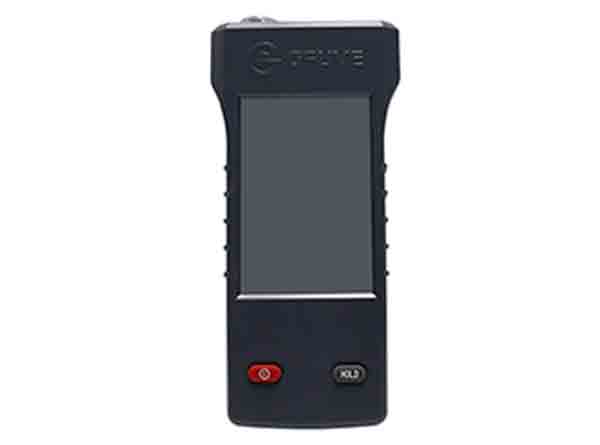

GF112W made in GFUVE GROUP, is a single phase high precision digital watt meter in class 0.05, 0.1, used for testing all kinds of single phase power system. Wide measurement range from 1mA to 10A or 20A and 0 to 600V, frequency range 40.000Hz to 70.000Hz, and also can be used to test alternating current electrical parameters - voltage, current, active power, reactive power, apparent power, harmonics, phase angle, power factor, frequency, kWh etc. It can display U & I wave form and vector diagram. Small size design, light weight, simple and convenient operation. It is an ideal high precision watt meter for the electrical laboratory and onsite service engineers.



Functions

  • U/I/P/Q/S/F/PF/Phase angle measurement;
  • 4-quadrant measurement;
  • Oscilloscope function display current & current wave;
  • 2-31st Harmonic measurement;
  • Display of vector diagram;
  • All kinds of parameters input function;
  • Data logger for all the parameters;
  • Power and energy measurement of active, reactive and apparent energy;
  • Frequency, phase angle and power factor measurement;
  • Harmonic analysis for voltage and current up to the 31st harmonics;
  • Display harmonic contents and bar graph;
  • As a high precision watt meter in the laboratory;
  • External thermal-printer;

Features

  • True power measurement;
  • True RMS measurement for ACV, ACA;
  • Watt: 0 to 12000W × 1W;
  • Power factor: 0.0001 to 1.0000 × 0.0001P;
  • ACV: 0 to 600V × 0.01V;
  • ACA: 0 to 10.000A/20.000A × 0.001A;
  • ACV input impedance: 10 Mega OH;
  • Data hold, record;
  • USB/BT computer interface;
  • With USB cable, USB-01;
  • Data download by U disk;
  • Frequency measuring range 40.000-70.000Hz;
  • Accuracy class 0.05, 0.1;
  • Easy and user friendly operation;
  • 3.5 inch color touch TFT LCD;
  • One screen displays all the measured parameters;
  • Storage 20000 groups data;
  • Unique long-term and temperature stability;
  • The best light weight watt meter;
  • Lithium batteries can be replaced;
  • The Li-battery can work 48 hours continuously;
  • Optional data acquisition software;
  • ISO17025 standard, with CNAS certificate;


Parameters

Electrical parameters
Accuracy class 0.05%, 0.1%
Active power measurement accuracy 0.05%, 0.1%
Energy measurement accuracy 0.05%, 0.1%
Power supply AAA type, Li rechargeable battery, 2700mAh, 3.6V
it can work 48 hours continuously
Warming-up time <2 min
Voltage measurement
U Range 0-600.00V
Accuracy 0.05%
Harmonics 2nd-31st
Resolution 0.01V
Current measurement
I Range 0-10.000A or 0-20.000A
Accuracy 0.05%
Harmonics 2nd-31st
Resolution 0.001A
Phase measurement
Range 0.00°-359.99°
Resolution 0.01°
Accuracy 0.05°
Frequency measurement
Range 40-70Hz
Resolution 0.001Hz
Accuracy 0.002Hz
Power Factor Measurement
Range -1.0000 ~ 0 ~ 1.0000
Resolution 0.0001
Accuracy 0.0002
Energy pulse output
Pulse constant 8000
Energy Pulse Input
Input range of pulse constant 1-25000
Pulse input level 5V
Function
Energy(kWh) accumulation Yes
Harmonic measurement Yes
Key Yes, 2PCS
Pulse cable Yes, 1PC
PC management software Yes, optional
BT printer Yes, optional
Android APP software Yes, optional
LCD 3.5 inch touch TFT color LCD
Data logger Yes
Data storage 20000 sets
Recorder time interval 1s, 2s...60mins can be setting
Data download Yes, U disk
Communication port USB & Bluetooth port
Standard
Standard IEC 62053-21,22, 23; IEC 60736; IR46; ANSI C12.20-2002;
JJG 597-2005; JJG596-2012; JJG 1085-2013; JJF 68-2019;
DL/T 826-2002; DL/T 1478-2015; DL/T 448-2016
Safety
Isolation protection IEC 61010-1:2001
Measurement Category 600 V CAT III
Degree of protection IP54
Declaration of conformity CE & CNAS certified
Mechanical parameters
Dimension (L×W×H)(mm) 155×75×33
Weight (kg) 0.35 (mains)
1.5 (accessory and box)
Environmental conditions
Working temperature -20°C to 50°C
Working humidity 5%-85%RHD
Storage temperature -25°C to 70°C
Storage humidity 5%-95%RHD
