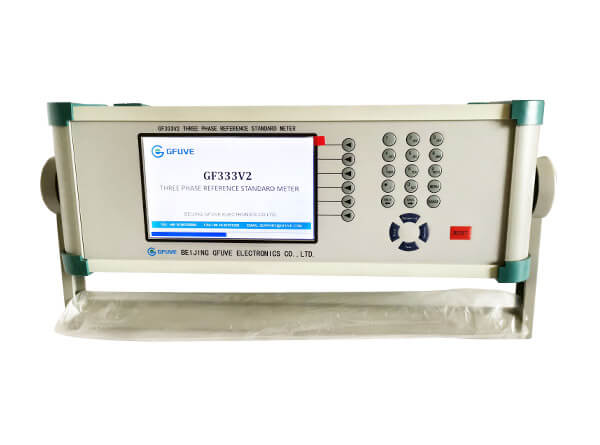

GF333V2 Three phase power and energy reference standard
GF333V2 three phase reference energy meter is a reference energy and power standard with the characteristics of wide-range 240A/600V, multifunction and high-precision. It has accuracy class of 0.02. By adopting techniques of 32bit DSP, embedded system and automatic temperature balancing and other compensation, it has not only advantages of light weight, small size, high precision, high performance, powerful function, original interface, ease-to-use, but also work stability. It has been designed for universal laboratory and test applications and is intended for checking and the calibration of reference standards for electrical power and energy. In addition, it can be integrated into meter or reference standard test systems of higher accuracy for test bench.
This model GF333V2 three phase reference standard can be widely used in fields of electric energy measuring, electric energy laboratories and other relevant industry, not only in ISO17025 electrical laboratories but also at the industrial field.
Parameters
| Electrical parameters | |
|---|---|
| Accuracy class | 0.02%, 0.04%, 0.05% |
| Power supply | 220V±10% or 110V±10%, 50/60Hz |
| Power consumption | 30VA |
| Voltage measurement(U1 U2 U3 UN) | |
| Range | 0-600.000V |
| Error | ±0.02% (40V-600V) ±0.05% (5V-40V) |
| Harmonic | 2nd-63st |
| Current measurement(I1 I2 I3) | |
| Range (direct connection) | 1mA-120.000A; 1mA-240.000A |
| Error (direct connection) | ±0.02% (10mA-120A) or (10mA-240A) ±0.05% (1mA-10mA) |
| Harmonic | 2nd-63st |
| Power measurement error | |
| Active power | ±0.02% (0.01A-120A) or (0.01A-240A) ±0.05% (0.001A-0.01A) |
| Reactive power | ±0.05% (0.001A-120A) or (1mA-240A) |
| Energy measurement error | |
| Active energy | ±0.02% (0.01A-120A) or (10mA-240A) ±0.05% (0.001A-0.01A) |
| Reactive energy | ±0.05% (0.001A-120A) or (1mA-240A) |
| Phase angle | |
| Range | 0°-360.000° |
| Resolution | 0.005° |
| Error | ±0.01° |
| Power factor | |
| Range | -1.00000-0-1.00000 |
| Resolution | 0.00005 |
| Error | 0.00001 |
| Frequency | |
| Range | 40.0000-70.0000Hz |
| Resolution | 0.0005 |
| Error | ±0.001 |
| Pulse output | |
| Output channel | 3 |
| Energy pulse constant | 1-9999999; programmable |
| Pulse ratio | 1:1 |
| Output level | 5V |
| Output rated frequency | 60KHz, max 86.4KHz |
| Pulse input | |
| Input channel | 3 |
| Input level | 5-24V or 3-12V |
| Input frequency | Max. 2MHz |
| Function | |
| LCD Display | 7" inch 800x480 pixel touch TFT |
| Vector diagram | Yes |
| Waveform | Yes |
| Energy accumulation | Yes |
| Distortion measurement | Yes |
| Stability measurement | Yes |
| Self-calibration | Yes |
| Data storage | Yes |
| PC software | Optional |
| Communication port | RS232, USB |
| Standard | |
| Standard | IEC 62053-21,22, 23; IEC 60736; IR46; ANSI C12.20-2022; JJG 597-2005; JJG596-2012; JJG 1085-2013; JJF 68-2019; DL/T 826-2002; DL/T 1478-2015; DL/T 448-2016 |
| Safety | |
| Isolation protection | IEC 61010-1:2001 |
| Measurement Category | 300 V CAT III, 600 V CAT II |
| Degree of protection | IP40 |
| Declaration of conformity | CE & CNAS certified |
| Mechanical parameters | |
| Dimensions (W×H×D) (mm) | 355×185×145 or 445×220×152 |
| Weight (kg) | 7.5 or 10 |
| Environmental conditions | |
| Ambient temperature | 0°C to 40°C |
| Storage temperature | -20°C to 65°C |
| Relative humidity | 10%-85% |
| Temperature coefficient | ≤0.0005% /℃ |
| Influence of external fields | ≤0.05 %/mT |
