current-transformer
-
GFLZZ0757-35Q Epoxy Resin Medium Voltage outdoor Current Transformer
The supporting-type current instrument transformers GFLZZ0757-35Q are fully enclosed and cast in epoxy resin. Transformer is equipped with one core and coil assembly rated for measurement and protection. The transformers are designed for electric power systems of 50Hz/60Hz rated frequency and 35kV rated voltage. They are used for outdoor mounting. The performances of the products meet standards IEC60044-1, IEC61869-2 and IEEE C57.13. The products are applied to metering electric energy, voltage controlling and relay protection.
-
GFLZZ0746-10GY 2000A/5A Wound Type Medium Voltage Current Transformer
- Design 30 years life
- Class 0.2s or 0.5s
- Hydrophobic cycloaliphatic epoxy(HCEP)
- Standard IEC 61869-2
- Rated current from 5 to 3150 A
-
GFLZZ0954-10E Presicion ANSI 5A CTs Current Transformer Supplier
- Design 30 years life
- Class 0.2s or 0.5s
- Standard IEC 61869-2
- Rated current from 5 to 1250 A
- design 1000m above sea level
-
GFLZZ1235-20A2 33kv Medium Voltage Current Transformer Manufacturer
- Design 30 years life
- Class 0.2s or 0.5s
- Hydrophobic cycloaliphatic epoxy(HCEP)
- Standard IEC 61869-2
- Rated current from 20 to 1200 A
-

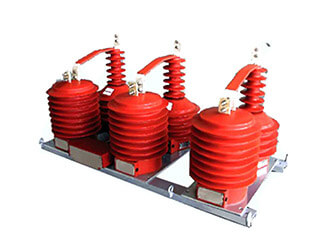

JLSZV-35W 3P4W IEC Combined current transformer and potential transformer
- Design 20 years life
- Class 0.2s or 0.5s
- Standard IEC 61869-2
- 3P3W or 3P4W
- Secondary voltage 100V or 100/ √3
- Rated current from 10 to 1200 A
-
LZZW1-35Q Hight Accuracy Industrial Post Type Current Transformer
- Design 20 years life
- Class 0.2s or 0.5s
- Hydrophobic cycloaliphatic epoxy(HCEP)
- Standard IEC 61869-2
- Rated current from 10 to 1500 A
- Tin plated copper primary terminals
-
LZZW3-35Q Instrument Multi Ratio Current Transformer
- Design 30 years life
- Class 0.2s or 0.5s
- Standard IEC 61869-2
- Multi ratio
- Rated current from 10 to 2000 A
- Tin plated copper primary terminals
