Q8 5a high performance permalloy clamp on ac current sensor

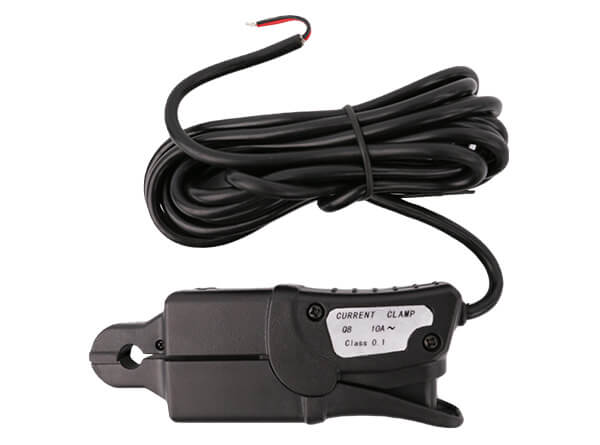

The model Q8 copper wire clamp-on ac current sensor is suitable for 5A, 10A cable online measurement, the user friendly shape make, It easily clamp onto cables. This Q8 is one high quality core current clamp, ratio 1000:1 or 2000:1, frequency from 40Hz to 2kHz, small jaw 8mm, compact design, according to EN 61010-2-032, 600V CAT III, IEC61869, IEC60044-1 standard strictly. The clamp type current sensor is also called current clamp, current probe or current transformer clamp, widely used in power instrument measurement, recorder & energy meter tester etc.
Quick Links: Download Catalogue
Features
- High precision 0.2% for current measurement;
- Measurement range of 1mA to 12A AC;
- Low phase shift less than 15' for power measurement;
- Leakage current measurement;
- Installation: clamp type design;
- Frequency 40Hz-2KHz bandwidth;
- Holding wire diameter: φ8mm;
- High content nickel metal permalloy core;
- 2-63th harmonic measurement;
- Can be customized 4mm banana/BNC connector;
- Improved ergonomic design & easy operation;
- Conforms to EN 61010-2-032, 600V CAT III;
- UL, CE, CNAS mark;
- Designed for DMMs, oscilloscopes, recorders, harmonic meters etc.;
Application
- Power meter;
- Phase angle meter;
- Power quality analyzer;
- Oscilloscopes meter;
- Energy meter calibrator (on site);
- Power and harmonic meters;
- Leakage current meter;
- Data logging/recording;
- Phase volt-ampere meter;
- Power quality monitoring;
- CT secondary current detection;
- Energy sub-meters;
- Digital multi-meter;
- Multi-function energy meter;
Parameters
| Electrical parameters | |
|---|---|
| Ratio | 2000:1 or 1000:1 (customized) |
| Accuracy class | 0.2%, 0.5% |
| Phase shift | <15' |
| Primary current | 0-5A, 0-10A AC |
| Secondary current | 0-5mA, 0-10mA AC (customized) |
| Secondary voltage | 0-0.1V AC, 0-0.5V AC, 0-1V AC, 0-5V AC |
| Max. cont. input current | 20A |
| Load capacity | ≤10Ω, standard 4Ω |
| Over voltage category | CAT III 600V |
| Output signal (AC current) | From 0 to 10mA AC at nominal input current |
| Output signal (AC voltage) | From 0 to 0.5V AC at nominal input current |
| Frequency range | 40Hz-2KHz |
| Dielectric strength | 3KV 50Hz/60Hz at 1minute |
| Temperature range | -20°C to +55°C |
| Output | 2.5 meter cable with D01 connector |
| Max. voltage not insulated conductors | 720V |
| Standard | EN 61010-1, EN 61010-2-032, EN 61010-2-031 IEC60044-1, & IEC61869-2, 600V CAT III |
| Installation | Clamp type |
| Output mode | Lead output (2.5m) |
| Connector | Audio connector, BNC, 4mm banana, signal cable (2 cores) |
| Mechanical parameters | |
| Dimensions (L x W x H)(mm) | 42.6 × 122.5 × 23 |
| Weight (g) | 225 |
| Holding wire diameter (mm) | φ8 |
| Max. jaw opening (mm) | 8 |
| Color | Gray |
| Material | PC+ABS+polycarbonate, UL94 V0 |
SELECTION GUIDE
| Model | Rate current | Max current | Secondary current | Coil ratio | Burden resistance | Accuracy |
|---|---|---|---|---|---|---|
| Q8-5 | 5A | 6A | 2mA | 2500:1 | customized | 0.2% |
| Q8-10 | 10A | 12A | 4mA | 2500:1 | customized | 0.2% |
| Q8-20 | 20A | 24A | 8mA | 2500:1 | customized | 0.2% |
| Q8-5-1 | 5A | 6A | 5mA | 1000:1 | customized | 0.2% |
| Q8-10-1 | 10A | 12A | 10mA | 1000:1 | customized | 0.2% |
| Q8-20-1 | 20A | 24A | 20mA | 1000:1 | customized | 0.2% |
| Q8-5-2 | 5A | 6A | 2.5mA | 2000:1 | customized | 0.2% |
| Q8-10-2 | 10A | 12A | 5mA | 2000:1 | customized | 0.2% |
| Q8-20-2 | 20A | 24A | 10mA | 2000:1 | customized | 0.2% |
| Q8V1-5 | 5A | 6A | 50mV | 2000:1 | customized | 0.2% |
| Q8V2-10 | 10A | 12A | 100mV | 2000:1 | customized | 0.2% |
| Q8V3-20 | 20A | 24A | 200mV | 2000:1 | customized | 0.2% |
| Q8V1-5-1 | 5A | 6A | 0.5V | 2000:1 | customized | 0.2% |
| Q8V2-10-1 | 10A | 12A | 1V | 2000:1 | customized | 0.2% |
| Q8V3-20-1 | 20A | 24A | 2V | 2000:1 | customized /td> | 0.2% |
