Q40 500A good linearity universal ac clamp on current ct sensor

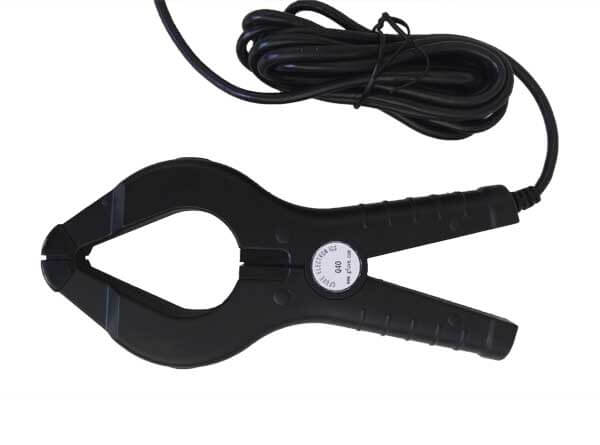

The Q40 series clamp on current sensor are high performance current clamp models, and use a custom nickel core to improve accuracy and phase shift on the low end of the measurement range. The Q40 ct clamp sensor is an excellent probe to be used in power and low level current measurement applications detection. The range, transformation ratio, output interface of the sensor can be customized according to customer requirements. Q40 CT clamp sensors, also known as current transformers or current sensors, are devices that measure the current running through a wire by using the magnetic field to detect the current and generate a proportional output. Q40 current CT sensors can be used to measure less than 500A AC current circuit on site.
Quick Links: Download Catalogue
Features
- Lower phase shift for power measurement;
- 1mV/A AC, 10mV/A AC or 1mA/A AC output signals;
- Measurement range of 1mA to 600A AC;
- Suitable for 10A, 50A, 100A, 500A cable online measurement;
- Improved ergonomic design and easy operation;
- Holding wire diameter: φ40mm;
- Installation: clamp type design;
- Small, compact size;
- UL, CE, CNAS mark;
- High content nickel metal permalloy core;
- Designed for DMMs, PQA, recorders, oscilloscopes and power meter;
- 10Hz to 200kHz response;
- Designed to EN 61010, 600V CAT III safety standard;
Application
- Waveform analysis;
- Power and harmonic meters;
- On site energy meter calibrator;
- Power quality analyzer;
- Phase angle meter;
- Data logging/recording;
- Power load monitoring;
- Large industrial loads;
- Measuring around cable bundles;
- Power meter;
- Power quality monitoring;
- CT secondary current detection;
- Digital multi-meter;
- Energy sub-meters;
- Multi-function energy meter;
- Multimeter;
- Power analyzer;
Parameters
| Electrical parameters | |
|---|---|
| Ratio | 1000:1 or 2000:1 (customized) |
| Accuracy class | 0.1%, 0.2%, 0.5% |
| Primary current | 0-500A AC |
| Secondary current | 0-500mA AC or 0-5V AC (customized) |
| Max. Cont. Input current | 600A |
| Load capacity | ≤10Ω, standard 4Ω |
| Over voltage category | CAT III 600V |
| Output signal (AC current) | 250mA, 500mA, 1V, 5V AC at nominal input current |
| Output signal (AC voltage) | 250mV, 500mV, 1V, 5V AC at nominal input current |
| Frequency range | 10Hz-200KHz |
| Dielectric strength | 3KV 50Hz/60Hz at 1 minute |
| Temperature range | -20°C to +55°C |
| Output | 2.5 meter cable with D01 connector |
| Max. voltage not insulated conductors | 720V |
| Standard | EN 61010-1, EN 61010-2-032, EN 61010-2-031 IEC60044-1, & IEC61869-2, 600V CAT III |
| Installation | Clamp type |
| Output mode | Lead output (2.5m), 5m or customized |
| Connector | BNC, 4mm banana, signal cable (2 cores), customized |
| Accuracy (500A range) | |
| 0-0.5A | ≤0.5% |
| 0.5-5 | ≤0.2% |
| 5-600A | ≤0.1% |
| Phase shift (500A range) | |
| 0-0.5A | ≤0.5° |
| 0.5-5 | ≤0.2° |
| 5-600A | ≤0.1° |
| Mechanical parameters | |
| Dimensions (LxWxH)(mm) | 82x290x25.3 |
| Weight (g) | 500 |
| Holding wire diameter (mm) | φ40 |
| Max. jaw opening (mm) | 40 |
| Jaw color | Black |
| Material | PC+ABS+polycarbonate, UL94 V0 |
SELECTION GUIDE
| Model | Rate current | Max current | Secondary | Coil ratio | Burden resistance | Accuracy |
|---|---|---|---|---|---|---|
| Q40A1-300 | 300A | 360A | 300mA | 1000:1 | customized | 0.1% |
| Q40A1-400 | 400A | 480A | 400mA | 1000:1 | customized | 0.1% |
| Q40A1-500 | 500A | 600A | 500mA | 1000:1 | customized | 0.1% |
| Q40A2-500 | 500A | 600A | 250mA | 2000:1 | customized | 0.1% |
| Q40A3-500 | 500A | 600A | 200mA | 2500:1 | customized | 0.1% |
| Q40V03-300 | 300A | 360A | 300mV | 1000:1 | customized | 0.1% |
| Q40V04-400 | 400A | 480A | 400mV | 1000:1 | customized | 0.1% |
| Q40V05-500 | 500A | 600A | 500mV | 1000:1 | customized | 0.1% |
| Q40V1-500 | 500A | 600A | 1V | 2000:1 | customized | 0.1% |
| Q40V2-500 | 500A | 600A | 2V | 2000:1 | customized | 0.1% |
| Q40V4-500 | 500A | 600A | 4V | 2000:1 | customized | 0.1% |
| Q40V5-500 | 500A | 600A | 5V | 2000:1 | customized | 0.1% |
| Q40V10-500 | 500A | 600A | 10V | 2000:1 | customized | 0.1% |
| Q40A1-300-2 | 300A | 360A | 300mA | 1000:1 | customized | 0.2% |
| Q40A1-400-2 | 400A | 480A | 400mA | 1000:1 | customized | 0.2% |
| Q40A1-500-2 | 500A | 600A | 500mA | 1000:1 | customized | 0.2% |
| Q40A2-500-2 | 500A | 600A | 250mA | 2000:1 | customized | 0.2% |
| Q40A3-500-2 | 500A | 600A | 200mA | 2500:1 | customized | 0.2% |
| Q40V03-300-2 | 300A | 360A | 300mV | 1000:1 | customized | 0.2% |
| Q40V04-400-2 | 400A | 480A | 400mV | 1000:1 | customized | 0.2% |
| Q40V05-500-2 | 500A | 600A | 500mV | 1000:1 | customized | 0.2% |
| Q40V1-500-2 | 500A | 600A | 1V | 2000:1 | customized | 0.2% |
| Q40V2-500-2 | 500A | 600A | 2V | 2000:1 | customized | 0.2% |
| Q40V4-500-2 | 500A | 600A | 4V | 2000:1 | customized | 0.2% |
| Q40V5-500-2 | 500A | 600A | 5V | 2000:1 | customized | 0.2% |
| Q40V10-500-2 | 500A | 600A | 10V | 2000:1 | customized | 0.2% |
| Notes: Can be customized current probe according to user requirements! | ||||||
