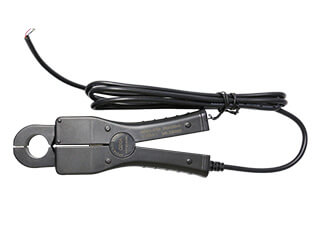

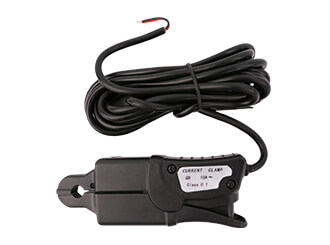

XQ20 high precision 200A AC mini clamp on split core current sensor

split core current sensor

The model XQ20 split core current sensor is suitable for 200A cable online measurement, the user friendly shape make It easily clamp onto cables or bus bars, no need to interrupt the power supply and disconnect the circuit in testing, easy to carry and especially suitable for on-site online testing. It output 0-200mA or 0-100mA AC signal for measuring and analyzing system. This XQ20 clamp on current sensor can customized two stall 10A/100A or 20A/200A, 1V or 2V output, the frequency output from 10Hz to 2MHz. It have been used many in power quality analyzer manufacturers, high reliability and accuracy 0.1%. This model XQ20 clamp current sensor are strictly in conformity with EN61010-1, EN61010-2-032, EN61010-2-031, IEC60044-1, & IEC61869-2 etc.



Features

  • UL, CE, CNAS mark;
  • Small, compact size;
  • 10Hz to 2MHz response;
  • Holding wire diameter: φ20mm;
  • Installation: clamp type design;
  • Measurement range of 1mA to 240A AC;
  • Low phase shift for power measurement;
  • High content nickel metal permalloy core;
  • Support two ratio 10/100A or 20/200A design;
  • Improved ergonomic design and easy operation;
  • 1mV/A AC, 10mV/A AC or 1mA/A AC output signals;
  • Designed to EN 61010, 600V CAT III safety standard;
  • Designed for DMMs, PQA, recorders and oscilloscopes;
  • Suitable for 10A, 20A, 100A, 200A cable online measurement;

Application

  • Multimeter;
  • Power meter;
  • Energy sub-meters;
  • Phase angle meter;
  • Digital multi-meter;
  • Oscilloscopes meter;
  • Power load monitoring;
  • Power quality analyzer;
  • Data logging/recording;
  • Electricity energy meter;
  • Power quality monitoring;
  • Power and harmonic meters;
  • Multi-function energy meter;
  • CT secondary current detection;
  • Measuring around cable bundles;
  • Energy meter calibrator on site;


Parameters

Electrical parameters
Ratio Ratio 1000:1, 2000:1 or 2500:1 (customized)
Accuracy class 0.1%, 0.2%
Primary current 0-10A AC, 0-20A AC, 0-100A AC, 0-200A AC
Secondary current 0-100mA AC, 0-200mA AC (customized)
Max. cont. input current 120A, 240A
Load capacity ≤20Ω, standard 4Ω
Over voltage category CAT III 600V
Output signal (AC current) From 0 to 200mA AC at nominal input current
Output signal (AC voltage) From 0 to 5V AC at nominal input current
Signal ratio 1mA/A, 1mV/A, 10mV/A, 100mV/A
Frequency range 10Hz-2MHz
Dielectric strength 3KV 50Hz/60Hz at 1minute
Temperature range -20°C to +55°C
Output 2.5 meter cable with D01 connector
Max. voltage not insulated conductors 720V
Standard EN 61010-1, EN 61010-2-032, EN 61010-2-031
IEC60044-1, & IEC61869-2, 600V CAT III
Installation Clamp type
Two stall optional 10/100A, 20/200A
Output mode Lead output (2.5m)
Connector BNC, 4mm banana, audio plug,customized
Mechanical parameters
Dimensions (LxWxH)(mm) 52.5x137.5x28
Weight (g) 400
Holding wire diameter (mm) φ20
Max. jaw opening (mm) 20
Jaw color Red, yellow, blue, green, black
Material PC+ABS+polycarbonate, UL94 V0

SELECTION GUIDE

Model Rate current Max current Secondary Coil ratio Burden resistance Accuracy
XQ20-10-1 10A 12A 10mA 1000:1 customized 0.1%
XQ20-10-2 10A 12A 5mA 2000:1 customized 0.1%
XQ20-10-3 10A 12A 4mA 2500:1 customized 0.1%
XQ20-20-1 20A 24A 20mA 1000:1 customized 0.1%
XQ20-20-2 20A 24A 10mA 2000:1 customized 0.1%
XQ20-20-3 20A 24A 8mA 2500:1 customized 0.1%
XQ20-100-1 100A 120A 100mA 1000:1 customized 0.1%
XQ20-100-2 100A 120A 50mA 2000:1 customized 0.1%
XQ20-100-3 100A 120A 40mA 2500:1 customized 0.1%
XQ20-200-1 200A 240A 200mA 1000:1 customized 0.1%
XQ20-200-2 200A 240A 100mA 2000:1 customized 0.1%
XQ20-200-3 200A 240A 80mA 2500:1 customized 0.1%
XQ20-V10-1 10A 50A 100mV 1000:1 customized 0.1%
XQ20-V10-2 10A 12A 1V 1000:1 customized 0.1%
XQ20-V10-3 10A 12A 5V 1000:1 customized 0.1%
XQ20-V20-1 20A 50A 200mV 1000:1 customized 0.1%
XQ20-V20-2 20A 24A 2V 1000:1 customized 0.1%
XQ20-V20-3 20A 24A 5V 1000:1 customized 0.1%
XQ20-V100-1 100A 120A 100mV 1000:1 customized 0.1%
XQ20-V100-2 100A 120A 1V 1000:1 customized 0.1%
XQ20-V100-3 100A 120A 5V 1000:1 customized 0.1%
XQ20-V200-1 200A 240A 200mV 1000:1 customized 0.1%
XQ20-V200-2 200A 240A 2V 1000:1 customized 0.1%
XQ20-V200-3 200A 240A 5V 1000:1 customized 0.1%
XQ20-5-12 5A 6A 5mA 1000:1 customized 0.2%
XQ20-5-22 5A 6A 2.5mA 2000:1 customized 0.2%
XQ20-5-32 5A 6A 2mA 2500:1 customized 0.2%
XQ20-10-12 10A 12A 10mA 1000:1 customized 0.2%
XQ20-10-22 10A 12A 5mA 2000:1 customized 0.2%
XQ20-10-32 10A 12A 4mA 2500:1 customized 0.2%
XQ20-20-12 20A 24A 20mA 1000:1 customized 0.2%
XQ20-20-22 20A 24A 10mA 2000:1 customized 0.2%
XQ20-20-23 20A 24A 8mA 2500:1 customized 0.2%
XQ20-100-12 100A 120A 100mA 1000:1 customized 0.2%
XQ20-100-22 100A 120A 50mA 2000:1 customized 0.2%
XQ20-100-32 100A 120A 40mA 2500:1 customized 0.2%
XQ20-V5-12 5A 50A 50mV 1000:1 customized 0.2%
XQ20-V5-22 5A 6A 500mV 1000:1 customized 0.2%
XQ20-V5-32 5A 6A 1V 1000:1 customized 0.2%
XQ20-V10-12 10A 50A 100mV 1000:1 customized 0.2%
XQ20-V10-22 10A 12A 1V 1000:1 customized 0.2%
XQ20-V10-32 10A 12A 5V 1000:1 customized 0.2%
XQ20-V20-12 20A 50A 200mV 1000:1 customized 0.2%
XQ20-V20-22 20A 24A 2V 1000:1 customized 0.2%
XQ20-V20-32 20A 24A 5V 1000:1 customized 0.2%
XQ20-V100-12 100A 120A 100mV 1000:1 customized 0.2%
XQ20-V100-22 100A 120A 1V 1000:1 customized 0.2%
XQ20-V100-32 100A 120A 5V 1000:1 customized 0.2%
XQ20-V200-12 200A 240A 200mV 1000:1 customized 0.2%
XQ20-V200-22 200A 240A 2V 1000:1 customized 0.2%
XQ20-V200-32 200A 240A 5V 1000:1 customized 0.2%
XQ20-V100-10 10/100A 12/120A 1V 1000:1 customized 0.1%
XQ20-V200-20 20/200A 24/240A 2V 1000:1 customized 0.1%
Notes: Can be customized current probe according to user requirements!
