Power Source
-
GF303D Portable-three phase ac voltage and current source
The GF303D electrical three phase precision power source can also be used to type test 0.1% to 2% energy meters. Choose the GF303D electrical three phase power source when you need the highest accuracy available for calibrating secondary standard meters, energy revenue meters and type test applications. The model GF303D three phase power source is electric AC voltage, current and power calibrator for calibration of power meters, power transducers, power quality analyzer, current meter, voltage meter and generally all kinds of power measuring devices...
-
GF3031 500V 120A Portable Three Phase Electrical Power Calibrator
- Weight 8KG only
- Portable design IP54
- Programmable controlled
- Accuracy 0.05%/0.1%/0.2%
- 0-120A, 0-500V, 40-70 Hz
- Phase shift 0.000°-359.999°
-
GF303DT Electrical Three Phase Programmable Power Source
- Programmable output
- Accuracy 0.2%/0.5%/1%
- 0-120A/0-500V/40-70HZ
- 1P2W, 1P3W, 3P3W, 3P4W
- 0.8C, 0.8L, 0.5C, 0.5L, 1
- 10%, 1%, 0.1%, 0.01% setting
-
GF101 Program-controlled single phase phantom load power source
- U/I/P/Q/S/F/Harmonic
- Accuracy 0.02%, 0.05%
- 0-120A/0-600V/40-70HZ
- Phase shift 0°-359.999°
- Programmable controlled
- Power supply AC 85-265V
-
GF303 Program-controlled three phase standard power source
- ISO17025 standard
- 0-20A/0-380V/40-65HZ
- Accuracy class 0.05%
- 8.4 inch touch TFT LCD
- Phase shift 0.00°-359.99°
- 0.8C, 0.8L, 0.5C, 0.5L, 1.0
-
GF303B Three phase electric portable power source
- Weight light 6.8kg
- Accuracy class 0.05%, 0.1%
- 3x(0-300V)/3x(0-6A)/40-65Hz
- Programmable control by RS232
- Phase shift from 0.00°-359.99°
- Phase setting 0.01°, 0.1°, 1°, 10°
-

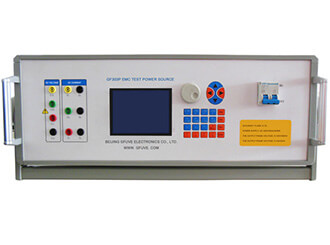

GF303P EMC test and measurement standard power source
- 0-380V/0-10A/0.1%
- EMC AC power source
- ISO17025 lab standard
- Frequency range 40-65Hz
- Phase shift 0.00°-359.99°
- PF setting -1.0000 - 0 - +1.0000
-
GF6019 Calibration equipment DC standard power source
- 0-1000V/0-30A DC
- ISO17025 standard
- Programmable by PC
- Accuracy class 0.02%
- U and I channel isolation
- Stability 0.01% RG/1 min
-

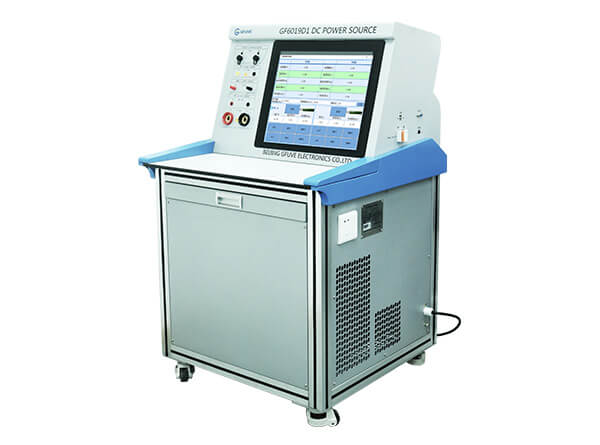

GF6019D1 500A 1000V DC power source with DC energy meter calibrator
- 0-1150V/0-600A
- Accuracy class 0.05%
- 15 inch touch TFT LCD
- Auto test DC meter error
- U and I channel isolation
- Stability 0.01% RG/1 min
