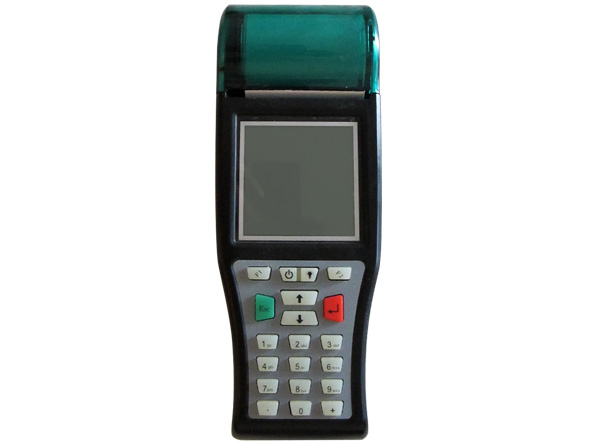

GF900P Portable infrared meter reader with inbuilt printer
GF900P is a portable infrared meter reader with inbuilt printer; you can print service bill or product bill on the spot. It is the upgrade version of the GF900 by GFUVE. Makes your work simple and effective.
Quick Links: Download Catalogue
Features
- Advanced design concept compound the terminal with the printer together.
- Carry out data acquisition and analysis.
- Reading data of electric energy meter via IR.
- High capacity rechargeable of lithium, low consumption printer, the pos terminal can work long time.
- Have two ways (sound and light) to notice user whether the printer is being short of power or short of paper.
Parameters
| Basic parameters | |
|---|---|
| CPU | ARM32 CPU 132MHz (SAMSUNG) |
| Operation system | TPOS |
| RAM | 512K |
| ROM | 2M |
| Flash | 64M Flash |
| Display | 3.2 inch display, 160x160 pixel |
| Real time | Much less than 0.5 seconds every day under common temperature |
| Keypad | 20 keypads |
| Non-slip function | Non-slip handle design, the battery back can locked to prevent battery cover lost |
| Power off protection | Using flash technology, the data is still safe preservation after power off |
| Control instruction | ESC/POS compatible instruction sets |
| Communication ports | RS232, IR, USB2.0 |
| Optional configuration | IR |
| Battery | High capacity rechargeable of lithium battery |
| Programming language | C language, DBF database development system |
| Seiko printer | |
| paper diameter | 40mm |
| The maximum width of the printing paper | 58mm |
| The maximum width can be printed | 48mm |
| Print method | Thermal line printing |
| Resolution | 8 dots/mm (203dpi) |
| The count of every line | 384 dots，every line can print 16 Chinese characters or 32 characters |
| Print contents | Chinese, Number, English, Graphics, Curve, Barcode |
| Print speed | 45mm/s |
| Mechanical parameters | |
| Dimensions (LxWxH) (mm) | 195×65×45 |
| Weight (g) | About 256 (not including battery) |
| Environmental conditions | |
| Work temperature | -5°C to 50°C |
| Storage temperature | -25°C to 70°C |
