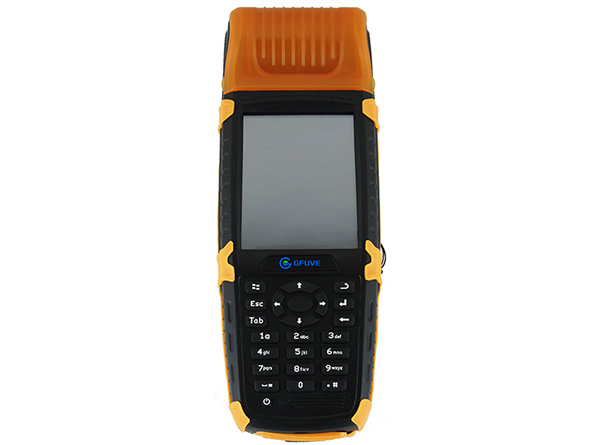

GF2000P Android industrial handheld PDA with inbuilt printer
Free SDK is provided for customers' secondary development; also we can customize the application software if required.
Quick Links: Download Catalogue
Features
- Android 4.0 or wince 6.0 operating system, easy to develop applications for them
- 1G Hz ARM11 CPU makes sure the fast operating speed of the device
- Seiko printer 8/mm (203dpi) gives you a good resolution of the printing
- GPRS/WCDMA/CDMA can be customized as your requirement
- RF/HF/UHF can be customized to match your system
- 1D/2D barcode supported
Application field
- Travel & Ticket billing for Air Ticket, Railway, Subway, Taxi, Bus, Movie
- Electricity, Gas, meter reading and billing
- Hotel/Supermarket/Retail/Restaurant/Convenience store management
- Lottery
- Surveying
Parameters
| Basic parameters | |
|---|---|
| CPU | ARM11 1G Hz |
| Memory | 2G |
| Operating system | Android 4.0 |
| Communication | USB2.0, 38K infrared (can transfer as far as 12m) |
| Display screen | 3.5-inch touch screen, 640x480 dots |
| Keyboard | 25 Silicone keyboard |
| Battery | Rechargeable battery 2000mA/7.2 |
| Expansion Slots | MICRO SD card |
| SIM card slot | 2 slots |
| Audio | High-volume speakers |
| Camera | 300 pixels, LED flashlight |
| GPS | Accuracy of 3m |
| Drop specifications | 6 surfaces can withstand drops from 1.5 meters to concrete impact |
| Scroll to specifications | 1,000 times 0.5 meters, six rolling contact surface |
| Sealed environment | IP64 |
| Wireless communications (option) | GSM/GPRS/EDGE: GSM850/EGSM900/DCS1800/PCS1900 WCDMA/HSDPA: 2100M(band I), 1900M(band II), 850M(band V) CDMA2000 |
| Wireless module (option) | IRDA, RF, HF, UHF |
| E-Tag RF13.56mhz (option) | |
| Supported standards | EPC gen 1 (0kind, 1kind) and gen 2 |
| Low working frequency | 125kHz |
| Tabdomining | EM 125KHz |
| Working frequency of high frequency | 13.56MHz |
| Protocol standard | ISO14443A/B,IS015693 |
| Nominal read range | 5.0cm to 10cm |
| Rated write scope | 5.0cm to 10cm |
| Range | From the front of the device from the 70 ° angle (according to the band) |
| Barcode reader (option) | |
| Optical resolution | 0.005 inches minimum bar width |
| Rotation angle | Vertical deviation angle +/-30° |
| Tilt angle | The angle from normal +/-65° |
| Offset visual tolerance | Deviation from the normal angle of +/-60° |
| Ambient light: sunlight | 8,000 ft.candles (86, 112 Lux) |
| Artificial light | 450ft.candles(4, 844Lux) |
| Scanning frequency | 50 scans per second (+/-6) times (two-way) |
| Scan angle | 46.5° (standard) |
| Laser power | 1.0am (standard) |
| Reading accuracy | Laser greater than 6 mil |
| Laser safety | IEC 2/FDA II grade, standards compliance IEC60825-1/EN60825-1 |
| Camera | Supported for read 2D barcode |
| Seiko printer | |
| Paper diameter | 45mm |
| Printing method | Thermal line |
| Resolution | 8/mm (203dpi) |
| Dots per line | 384dots, 32 English characters/line |
| Print contents | Chinese, Numbers, English, all kinds of symbols |
| Printing speed | 50mm/s (adjustable) |
| The way loading paper | Clamshell type paper |
| Paper out test | When the printer runs out of paper function sounds |
| Black label test | Yes |
| Mechanical parameters | |
| Dimension (L×W×H)(mm) | 200×60×50 |
| Weight | Includes standard battery 320g |
| Environmental conditions | |
| Working temperature | -20°C to 50°C |
| Storage temperature | -25°C to 70°C |
| Humidity | 5%RH-95%RH (no condensation) |
