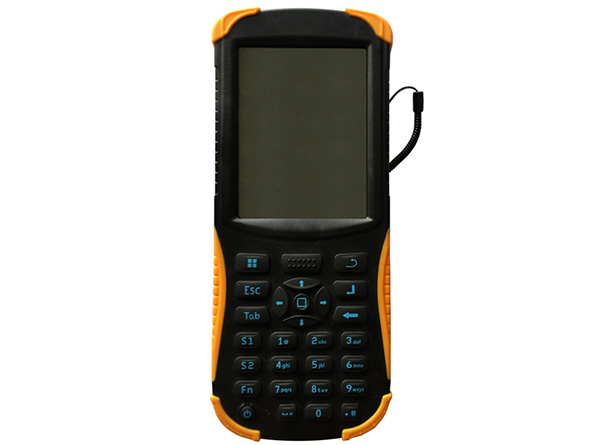

GF2000 Android multifunctional portable industrial PDA
Free SDK is provided for customers' secondary development. Also we can customize the application software if required. Android multifunctional Portable Industrial PDA brings a lot of convenience to you.
Quick Links: Download Catalogue
Features
- Android 4.0 or Wince 6.0 operating system, easy to develop applications for them.
- 1G Hz ARM11 CPU makes sure the fast operating speed of the device.
- IP64 Protect Level
- GPRS/WCDMA/CDMA can be customized as your requirement
- RF/HF/UHF can be customized to match your system
- 1D/2D Barcode Supported
- Stable
Application field
- Livestock management with RF-Tag
- Electricity, Gas, Petrol meters reading and billing
- Hotel, Supermarket, Retail, Restaurant, Convenience store management.
- Surveying & data collecting.
Parameters
| Basic parameters | |
|---|---|
| CPU | ARM11 1G Hz |
| Memory | KE44A-26BN/4GB, EDE2116AEBG-8E-F/1G |
| Operating system | Android 4.0 |
| Communication | USB2.0, 38K Infrared (Can transfer as far as 12m.) |
| Display screen | 3.5-inch touch screen, 640x480 dots |
| Keyboard | 25 Silicone keyboard |
| Battery | Rechargeable battery 3000mA/3.7V |
| Expansion slots | MICRO SD card |
| SIM card slot | 2 slots |
| Audio | High-volume speakers |
| Camera | 300 pixels, LE D flashlight |
| GPS | Accuracy of 3 m, UBLOX NEO-6M GPS-six |
| Drop Specifications | 6 surfaces can withstand drops from 1.5 meters to concrete impact |
| Scroll to specifications | 1,000 times 0.5 meters, six rolling contact surface |
| Sealed environment | IP64 |
| Wireless communications (option) | GSM/GPRS/EDGE: GSM850/EGSM900/DCS1800/PCS1900 WCDMA/HSDPA:2100M(band I), 1900M(band II), 850M(band V) CDMA2000 |
| Wireless Module (Option) | IRDA, RF, HF, UHF |
| E-Tag RF13.56mhz (option) | |
| Supported Standards | EPC Gen 1 (0kind, 1kind) and Gen 2 |
| Low working frequency | 125kHz |
| Tabdomining | EM 125KHz |
| Working frequency of high frequency: | 13.56MHz |
| protocol standard | ISO14443A/B, IS015693, |
| Nominal read range | 5.0cm to 10cm |
| Rated write scope | 5.0cm to 10cm |
| Range | From the front of the device from the 70° angle (according to the band) |
| Barcode reader (option) | |
| Optical Resolution | 0.005 inches minimum bar width |
| Rotation angle | Vertical deviation angle +/-30° |
| Tilt angle | The angle from normal +/-65° |
| Offset visual tolerance | Deviation from the normal angle of +/-60° |
| Ambient light: Sunlight | 8,000 ft. candles (86,112 Lux) |
| Artificial light | 450ft.candles(4,844Lux) |
| Scanning frequency | 50 scans per second (+/-6) times (two-way) |
| Scan angle | 46.5° (standard) |
| Laser power | 1.0 ma (standard) |
| Reading accuracy | Laser greater than 6 mil |
| Laser safety | IEC2/ FDA II grade, standards compliance IEC60825-1/ EN60825-1 |
| Camera | Supported for 2D barcode Read |
| Mechanical parameters | |
| Dimension (L×W×H) (mm) | 200×70×27 |
| Weight | Includes standard battery 320 g |
| Environmental conditions | |
| Working temperature | -20°C to 50°C |
| Storage temperature | -25°C to 70°C |
| Humidity | 5%RH-95%RH(no condensation) |
