GF1100 Handheld logistic and warehouse management terminal

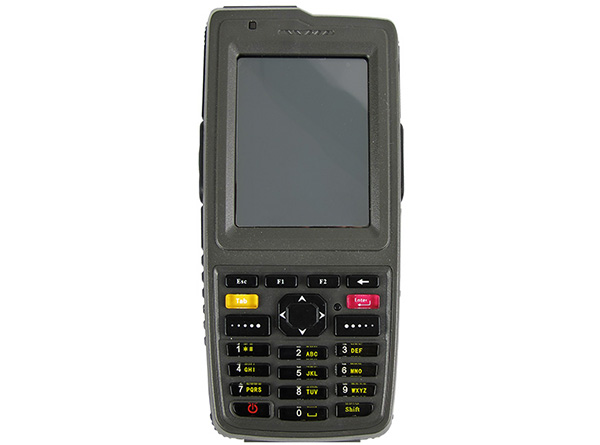

Front view of the  Handheld Logistic and warehouse management terminal

GF1100 is the best cost Handheld Logistic and warehouse management terminal made by GFUVE, it can be used in many field, like reading electric meters (IR or RF), reading barcodes for management, also can be used a Data collecting machine. Its IP54 Protection level and stable & reliable Wince 6.0 Operation System makes it to be your good assistant.



  • Support USB2.0, RS232, IRDA
  • Support WIFI, Bluetooth, GPRS
  • Support 433M/868M/915M RFID module
  • Support 13.56M module
  • Support GPS application
  • Support Micro SD card Support 32GB
  • Support all language display to develop application software


Basic parameters
CPU ARM926, 400MHz
Memory RAM 512MB, Flash 64MB
TF card can expend to 32GB
Display 2.8 Inch TFT display, 320×240piexl, 26 thousands color
Keypad 21 keypads
Communication USB2.0, RS232, RS485
Wireless communication WIFI, Bluetooth, GPRS are optional
Scan module 1D laser, IRDA
Battery 3.7V lithium battery, 2800mAH
Drop height range 1.2 M
Sealed classes IP54
The specifications of laser security Meet IEC Class 2/FDA Class II, IEC60825-1/EN60825-1
Mechanical parameters
Weight (g) 405 (including battery)
Dimensions (LxWxH) (mm) 160×58×42
Environmental conditions
Work temperature -20°C to +50°C
Work humidity 5% - 90% (without condensation)
Storage temperature -30°C to +70°C
Storage humidity 5% - 95% (without condensation)
