GF1118 Laboratory Platform Evse Testing Equipment

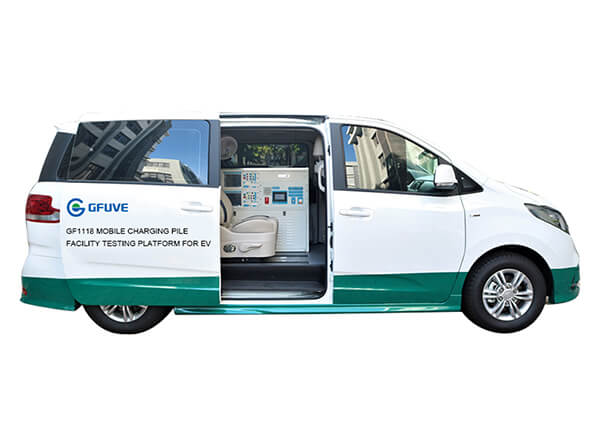

The GF1118 mobile Laboratory platform EVSE testing equipment for EV integrates the detection platform and the vehicle, ensuring the safety and comfort during driving. The testing platform includes: remote console, AC / DC integrated load unit, EV & Charging Pile AC Test Set, EV & Charging Pile DC Test Set, AC parameter measurement device, power analyzer and safety regulation instrument, etc. Among them, the built-in integrated programmable load unit capacity is up to 120KW (DC) +24KW (AC), which can meet the measurement and detection of off-board charging piles of 240KW and below and the detection of AC charging piles of 24kw and below.
Quick Links: Download Catalogue
In addition, the test vehicle has the function of interoperability and protocol consistency test of charging piles, and adds all the test contents of the latest energy standard on-site test procedures for electric vehicle charging equipment. The installation area of on-board power supply is reserved on the vehicle. The user can select and match the on-board power supply according to the actual needs to meet some special occasions. When there is a lack of electric detection vehicle source on site, it can be used as the equipment emergency power supply.
Application
- National metrology and testing department;
- Electricity power bureau & power company;
- Metrological service center;
- Electrical laboratory;
- Laboratories of power utilities;
- EV & Charging pile operator;
- Third party testing organization;
Features
- Integrated design, built-in AC/DC load and related test equipment, out of the pile, i.e. on arrival;
- With the "characteristic quantity detection" technology, the GB/T 34657.1-2017 interoperability test can be completed without the internal wiring of the charging pile, and the gun can be inserted once, which is safe and fast;
- Using multi closed-loop zero flux sensor based on fluxgate technology and electronic FPGA technology, DC measurement can achieve accuracy better than 0.05% in a wide range, and accuracy better than 0.01% in full range;
- Using 512 times oversampling and 24bit ad technology, AC measurement can achieve an accuracy of better than 0.05% in a wide range and an accuracy of better than 0.01% in full range;
- Complete all verification items of JJG1148 and JJG1149 with one touch (card swiping operation is required, and the typical test time is 5 minutes);
- More than 200 types of off board charger BMS commissioning experience, supporting national standards GB/T27930-2015, GB/T27930-2011, etc;
- Multiple protections, using "Kalman prediction algorithm", constantly monitor the operation indicators of various equipment in the system, predict the possible hidden dangers or faults, and ensure the safety and reliability of the system;
- "Wireless local area interconnection technology" can be used in the cab for remote testing, especially for outdoor harsh environment;
- Connect to the "network cloud platform", interact with the data of the test center, and return the test information and status in real time;
- Various power supply schemes, including energy vehicle battery power supply, external power supply and on-site AC charging pile power supply, fully meet the complex on-site conditions.
- Meet Europe standard IEC61851-1, ISO/IEC 61851-23, ISO/IEC 61851-24, ISO15118-20, DIN 70121, SAE J1772.
Test Item
1. For Charging AC Pile Test Item
| Test Type | Functions | Test Type | Functions |
|---|---|---|---|
| Interoperability test inspection items | Connection confirmation test | General inspection(NBT site inspection regulations) | Verification of technical data |
| Charging readiness test | Visual inspection | ||
| Start up and charging phase test | Internal inspection | ||
| Normal charge end test | Charging mode and connection mode check | ||
| Charging connection control sequence test | Cable management and storage inspection | ||
| CC interrupt test | Sign check | ||
| CP interrupt test | Safety protection inspection(NBT site inspection regulations) | Insulation resistance test | |
| CP grounding test | Grounding test | ||
| Continuity loss test of protective grounding conductor | Residual current protection function test | ||
| Output overcurrent test | Direct contact protection test | ||
| Disconnect switch S2 test | Functional inspection(NBT site inspection regulations) | Display function | |
| CP loop resistance test | Input function | ||
| JJG Metrological verification regulation | Visual inspection | Charging function | |
| Insulation resistance test | Communication function with operation management system | ||
| Working error | Safety requirements inspection(NBT site inspection regulations) | Emergency stop function test | |
| Indication error | Locking function test | ||
| Payment amount error | Door opening protection test | ||
| Clock indication error | others | …… |
2. For Charging DC Pile Test Item
| Test Type | Functions | Test Type | Functions |
|---|---|---|---|
| Charging DC pile interoperability test function | Connection mode check | General inspection(NBT site inspection regulations) | Verification of technical data |
| Interface structure dimension inspection | Visual inspection | ||
| Dimensional inspection of interface space | Internal inspection | ||
| Connection confirmation test | Charging mode and connection mode check | ||
| Self test phase test | Cable management and storage inspection | ||
| Charging readiness test | Sign check | ||
| Charging phase test | Safety protection inspection(NBT site inspection regulations) | Insulation resistance test | |
| Normal charge end test | Grounding test | ||
| Charging connection control sequence test | Direct contact protection test | ||
| Communication interruption test | Functional inspection(NBT site inspection regulations) | Display function | |
| Switch S off test | Input function | ||
| Vehicle interface Disconnection Test | Charging function | ||
| Insulation fault test | Communication function with operation management system | ||
| PE break test | Safety requirements inspection(NBT site inspection regulations) | Emergency stop function test | |
| Output voltage control error test | Locking function test | ||
| Output current control error test | Door opening protection test | ||
| Output current control time test | Charging DC pile output performance test(NBT site inspection regulations) | Low voltage auxiliary power supply test | |
| Output current stop rate test | Output voltage error test | ||
| Control pilot voltage over limit test | Output voltage measurement error test | ||
| Charging DC pile protocol conformance test items | CHM message test | Output current error test | |
| CRM message test | Output current measurement error test | ||
| Charge handshake test | Voltage limiting characteristic test | ||
| Charge handshake negation test | Current limiting characteristic test | ||
| CRM message test | JJG Metrological verification regulation | Visual inspection | |
| CML message test | Insulation resistance test | ||
| CRO message test | Working error | ||
| Charging parameter configuration test | Indication error | ||
| Charge parameter configuration negative test | Payment amount error | ||
| CRO message test | Clock indication error | ||
| CCS message test | others | …… | |
| CST message test | |||
| Charging test | |||
| Charge negation test | |||
| CST message test | |||
| CSD message test | |||
| Charge end test | |||
| Charge end negative test |
