JDZW-35 JDZXW-35G 33KV Medium Voltage voltage Transformer Manufacturer

voltage Transformer Manufacturer

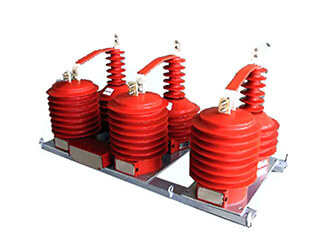

GFUVE Electronics is a medium voltage potential transformer Manufacturer. manufactures an extensive line of cast epoxy resin insulated transformers across the voltage range of 5.5 kV to 72.5 kV. This model JDZW-35 JDZXW-35G are outdoor Voltage Transformers in the 36 kV class with performance ratings coinciding with industry standard product offerings. GFUVE Electronics, because of product depth, familiarity with international standards and custom design capability can also design a solution to your specific needs.

Request a quote
Quick Links: Download Catalogue


parameters

Model Rated Voltage Ratio(KV) Accuracy class and Accuracy class combination rated secondary output (VA) Limited output (VA) Rated insulation level (KV) Surface creepage distance (mm) Once fuse(A) Wt(KG)
JDZW-35 35000/100 0.2---60
0.5---150
1---300
3---600		 1200 40.5/95/200 1480 0.2 120
35000/100/100 0.2/0.2---30/30
0.2/0.5---30/10
0.5/0.5---60/60		 600/600
JDZXW-35G
35000/√3
100/√3 100/√3
0.2/6P(3P)---10/100
0.5/6P(3P)---90/100
1/6P(3P)---200/100
3/6P(3P)---500/100		 600
35000/√3
100/√3 100/√3 100/√3
0.2/0.2/6P(3P)---15/15/100
0.2/0.5/6P(3P)---15/20/100
0.5/0.5/6P(3P)---30/30/100		 300/300
