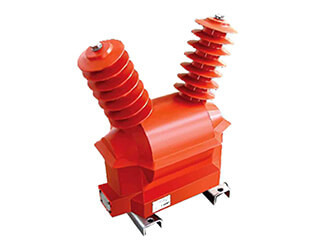

GFJDZX0966-10G High performance indoor voltage transformer for sale

indoor voltage transformer for sale

The Model GFJDZX0966-10G voltage transformer is single-phase multi-winding whole sealing epoxy pouring product. It is used both indoor for measurement of voltage and electric energy as well as relay protection in the electric system of rated frequency 50/60Hz and rated voltage 12kV or below. It is designed in accordance with Standards IEC60044-2, IEC61869-3 and ANSI/IEEE C57.13.

Request a quote
Quick Links: Download Catalogue


Parameters

Technical parameters　
Standards IEC60044; IEC 61869; ANSI/IEEE C57.13
Rated Voltage 10KV, 6KV
Rated load ≤100VA
Rated frequency 50Hz or 60Hz
Cosø 0.8 (lag)
Phase number Single
Rated insulation level 12/42/75KV, 7.2/32/60KV
Class of pollution II
Mechanical parameters　
Material Epoxy resin
Weight (kg) 28
Operating conditions　
Operating temperature -25°C to +55°C
Daily average temp <+40°C
Storage temperature -40°C to +70°C
Altitude <1000 meters
Condition No existence of severely begrimed, erosive and radioactive gas in the air. Permission of long-term operation under rated current.

Technical parameters

Model Rated Voltage Ratio(KV) Class Combination Accuracy class and Rated output(VA) Limiting Therminal Output(VA)
0.2 0.5 1.0 6P
GFJDZX0966-10G 10/√3/0.1/√3/0.1/3 0.2/6P
0.5/6P
1.0/6P		 20 60 90 100 400
GFJDZX0966-6G 6√3/0.1/√3/0.1/3
GFJDZX0966-10G 10/√3/0.1/√3/0.1/√3/0.1/3 0.2/0.5/6P 10 15   50
GFJDZX0966-6G 6/√3/0.1/√3/0.1/√3/0.1/3
