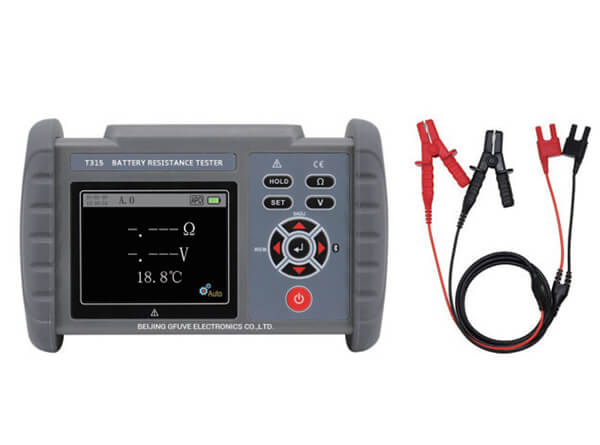

T-315 battery tester

battery tester

The T-315 battery tester is a measuring instrument used to measure the internal resistance, voltage and temperature of rechargeable batteries such as lead-acid battery and lithium battery, so as to judge the battery health status. At the same time, it can be used as an instrument to measure the ESR parameters of electrolytic capacitor (for reference only). The instrument uses the AC 4-terminal test method to measure the internal resistance of the battery, and can measure the correct measurement value without being affected by the contact resistance between the test line, terminal and battery electrode. At the same time, it also has the functions of data storage, data access, alarm, automatic shutdown and so on. The whole machine has the advantages of high-grade and beautiful appearance, wide range, high resolution, convenient operation, convenient carrying, accuracy, reliability, stable performance and strong anti-interference ability. It is an indispensable instrument for battery production, battery installation, equipment production, equipment maintenance and other scenes.



The T-315 battery tester is controlled by microprocessor, and the internal 16 bit ADC can accurately detect the battery internal resistance, voltage and temperature. It is characterized by measuring without stopping the UPS system, using AC low resistance measurement and noise reduction technology, without stopping the normal operation of the tested equipment, and measuring under the running state, which greatly shortens the test time. At the same time, it has the functions of histogram display, data upload to computer, PDA and other intelligent devices, such as Bluetooth connection for wireless measurement, data access and so on.

Request a quote
Quick Links: Download Catalogue


Application

  • Measurement the internal resistance of battery
  • Measurement the voltage and temperature of battery
  • Measurement the ESR parameters of electrolytic capacitor
  • Check the battery health status

Features

  • Four wire method measurement
  • 3mΩ/30mΩ/300mΩ/3Ω range
  • 7V/70V range
  • High resolution 1uΩ and 1mV
  • Using noise reduction technology
  • Storage 5000 data logger
  • Built in batteries power supply
  • Low power design
  • With USB port


Parameters

Electrical parameters
Resistance measurement range 3mΩ/30mΩ/300mΩ/3Ω
Resolution 1uΩ/10uΩ/100uΩ/1mΩ
Accuracy 1%
Voltage measurement range 7V/70V
Resolution 1mV/10mV
Accuracy 0.5%
Temperature measurement range -10.0°C~60.0°C
Resolution 0.1°C
Accuracy ±1.0°C
Measurement method Internal resistance measurement: 1kHz AC 4-terminal test method, open circuit terminal voltage 3V max
Measuring current: 2.0ma~200mA (different measuring currents in different ranges and gears)
Temperature measurement: NTC temperature sensor (10KΩ at 26°C)
A/D conversion mode: successive approximation type
Display update frequency: 5 times/second
Response time 200ms
Measurement time About 2 seconds
LCD dispaly 70.1mm×52.6mm/3.5 inches (320*240 resolution 16 bit TFT)
Communication port USB, bluetooth
Storage data max 5000 sets
Power supply DC 3.7V rechargeable lithium battery
Insulation resistance Above 20MΩ (500V between circuit and shell)
Withstand voltage AC 3700V/RMS (between circuit and shell)
External magnetic field <40A/m
External electric field <1V/m
Consumption 300mA MIN/500mA MAX
Standard IEC 61010
Mechanical parameters
Dimensions (W×D×H)(mm) 190×121×51
Weight (g) 480 (with battery)
Environmental conditions
Operating temperature -15°C to +55°C
Storage temperature -20°C to +65°C
Relative humidity 0%-95%RH
