FU9000 three phase AC digital current and voltage display meter
FU9000 series three phase current and voltage display meter has replaced the traditional digital meters. This product has the function of traditional products, also has programmable functions, DC4-20mA analog output, RS485 communication interface port and the switching power output functions. This product has high accuracy, excellent EMC and good appearance and so on.
Quick Links: Download Catalogue

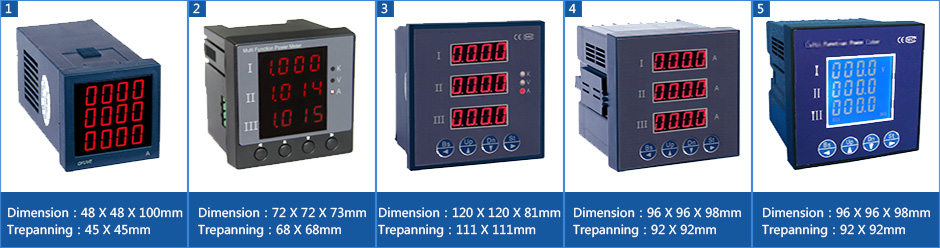

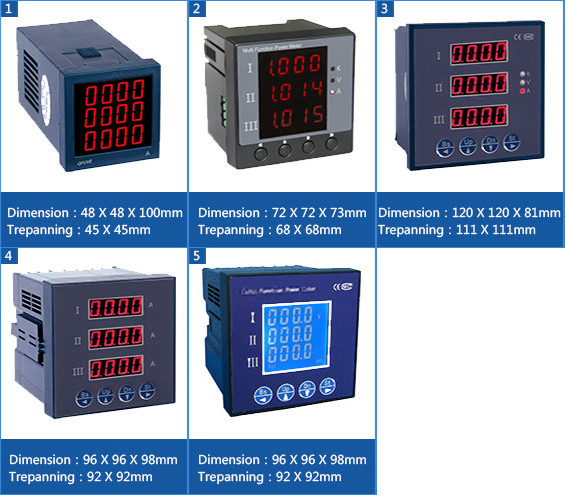

optional designs
Technical Parameter
| Name | Measurement type |
|---|---|
| Programmable | PT, CT ratio, address, baud rate and other parameters. |
| Accuracy | 0.5 class |
| Display Figures | 4 bits |
| Rated input | Current: 1A, 5A Voltage: 100V, 220V, 380V |
| Over Range | Current: 1.2 times continuous, 10 times/10s ; Voltage: 2 times continuous |
| Frequency | 50±5Hz or 60±10Hz (Option) |
| Power Supply | AC220V ± 20% or DC100-300V (Customization) |
| Power consumption | <3VA |
| Insulation strength | 2KV/Min. 2mA |
| Insulation resistance | ≥100MΩ |
| MTBF | ≥50000Hrs |
| Working Environment | Temperature: -25 to +55℃ Humidity: ≤98% RH, without condensation |
| Real-time output | DC4-20mA, load capacity: ≤400Ω |
| Data output | RS485 port (Modbus-RTU protocol) |
| Switching input | Remote signal input (self power supply): AC or DC 220V |
| Switching output (self-control) | Normally open contact output: AC 250V / DC 30V, 5A |
Model description
| FU9 - Dimension - Product code - Function code - Display | |
|---|---|
| Dimension code | 0: 48 x 48 x 100mm |
| 1: 72 x 72 x 73mm | |
| 2: 120 x 120 x 81mm | |
| 3: 96 x 96 x 98mm | |
| Product code | 0: Three AC current |
| 1: Three AC voltage | |
| 2: Three AC current and voltage combined | |
| Function code | 0: Display only |
| 1: RS485 | |
| 2: 1DO | |
| 3: 1AO | |
| 4: 1DO + RS485 | |
| 5: 1AO + RS485 | |
| 6: 1DO + 1AO | |
| 7: 1DO + 1AO + RS485 | |
| 8: 2DO + 1AO | |
| 9: 2DO + RS485 | |
| A: 1DI + 1DO + RS485 | |
| B: 2DI + 2DO + RS485 | |
| Display | (Nothing)：LED |
| Y: LCD | |
| Remark: 1) FU9000 series products have no button, without output. 2) Power terminal blocks numbered 15, 16 for LCD products. |
|
