FU8000 single phase AC DC digital current and voltage display meter
FU8000 series single phase current and voltage display meter has replaced the traditional digital meter products. This product has the function of traditional products, also has programmable functions, such as DC4-20mA analog output, RS-485 communication interface port and the switching power output function. It has high accuracy, excellent EMC and good appearance and so on.
Quick Links: Download Catalogue
Features
- It has programmable function
- DC4-20mA analog output
- High accuracy, excellent EMC and good appearance
- RS-485 communication interface port
optional designs
Technical Parameters
| Name | Measurement type |
|---|---|
| Programmable | PT, CT ratio, address, baud rate and other parameters. |
| Accuracy | 0.5 class, frequency 0.2 class |
| Display figures | 4 bits (4½ bits for DC) |
| Rated input | Current: 1A, 5A; Voltage: 100V, 220V, 380V; |
| Temperature: PT100, J, K, T, E thermocouple. | |
| Over range | Current: 1.2 times continuous, 10 times/10s; |
| Voltage: 2 times continuous | |
| Frequency | 50Hz/60Hz ±10% |
| Power supply | AC 220V ± 20% or DC 100-300V (customization) |
| Power consumption | <3VA |
| Insulation strength | 2KV/min. 2mA |
| Insulation resistance | ≥100MΩ |
| MTBF | ≥50000Hrs |
| Working environment | Temperature: -25 to +55°C |
| Humidity: ≤98%RH, without condensation | |
| Real-time output | DC4-20mA, load capacity: ≤400Ω |
| Data output | RS485 port (Modbus-RTU protocol) |
| Switching input | Remote signal input (self power supply): AC or DC 220V |
| Switching output (self-control) | Normally open contact output: AC 250V/DC 30V, 5A |
| FU8 - dimension code - product code - function code - display | |

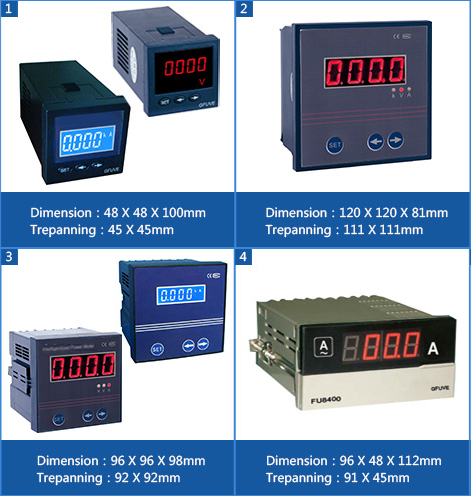

| Dimension code | 0: 48x48x100mm |
| 2: 120x120x81mm | |
| 3: 96x96x98mm | |
| 4: 96x48x112mm | |
| Product code | 0: Single phase AC current |
| 1: Single phase AC voltage | |
| 2: One route DC current | |
| 3: One route DC voltage | |
| 4: Frequency | |
| 5: Single phase power factor | |
| 6: Temperature | |
| 8: All of the electric parameters | |
| Function code | 0: Display only |
| 1: RS485 | |
| 2: 1DO | |
| 3: 1AO | |
| 4: 1DO+RS485 | |
| 5: 1AO+RS485 | |
| 6: 1DO+1AO | |
| 7: 1DO+1AO+RS485 | |
| 8: 2DO+1AO | |
| 9: 2DO+RS485 | |
| A: 1DI+1DO+RS485 | |
| B: 2DI+2DO+RS485 | |
| Display | (Nothing): LED |
| Y: LCD | |
