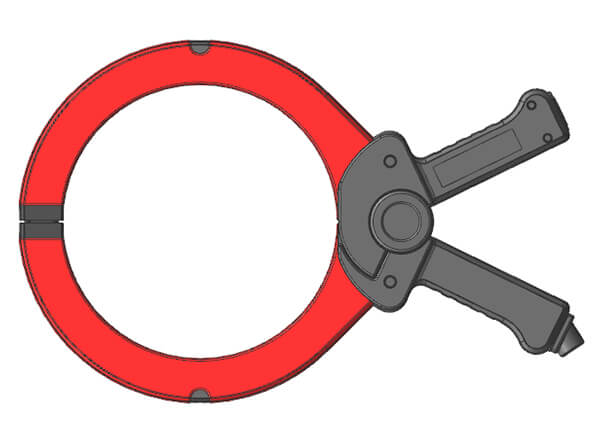

S150 Large Jaw Cable Fault Location Supermalloy Current Transformer Clamp
The S150 ct clamp is a high performance AC Clamp on current transformer probe with excellent transformation and low phase shift. The high quality magnetic supermalloy core and uniform windings provide for accurate measurements up to 3000AAC/2000AAC/1000AAC/500AAC. The "ring type" jaw permits good magnetic conduction and cable positionings. Provide excellent RMS capabilities and reliable signal reproduction.
Quick Links: Download Catalogue
DESCRIPTION
The S150 current transformer clamp is well suited for cable fault analysis and location and power quality applications where high accuracy and low phase shift along with wide frequency from 10Hz to 200kHz are important. Measurement range is 1mA to 3000A.
The S150 current transformer clamp is a general purpose 3000A AC Clamp current probe transformer designed for use with 4mm banana terminal & BNC, cable fault analysis and loggers instruments that have a current input. It has a 1000:1 or 2000:1 ratio and output of 1mA/A or 1mV/A measured in the jaw. The S150 has an integral 2.5m or 5m lead terminated. The rounded jaw design on this ct clamp probe makes it well-suited for cable fault analysis applications where high precision and low phase shift and wide frequency.
Applications
- Cable fault analysis and location;
- Power quality analyzer(PQA);
- Power load monitoring;
- Power and harmonic meters;
- Waveform analysis(oscilloscopes meter);
- Energy meter calibration equipment;
- Measuring around cable bundles;
- Power meter;
- Data logger/current recorder;
- Large industrial loads;
- Power quality monitoring;
- CT secondary current detection;
Features
- Measurement range of 1mA to 3000A AC;
- Improved ergonomic design & easy operation;
- Using supermalloy core;
- High precision 0.1% for current measurement;
- Low phase shift for power measurement;
- Frequency 10-200kHz;
- Holding wire diameter: φ150mm;
- Conforms to EN 61010, 600V CAT III;
- Transformation ratio: 100:1...3000:1, 200:5...2000:5, 3000:5;
- Designed for DMMs, recorders, loggers, oscilloscopes, power and harmonic meters;
- Industrial design & beautiful appearance;
- UL, CE CNAS mark;
Parameters
| Electrical parameters | |
|---|---|
| Ratio | 1000:1, 200:5 or... 3000:5(customized) |
| Accuracy class | 0.1%, 0.2%, 0.5% |
| Primary current | 0-3000A AC |
| Secondary current | 0-1A or 0-5A AC (customized) |
| Secondary voltage | 0-1V, 0-5V AC (customized) |
| Max. cont. input current | 3600A |
| Load capacity | ≤20Ω, standard 4Ω |
| Over voltage category | CAT III 600V |
| Output signal (AC current) | 500mA, 1A, 2A, 5A AC at nominal input current |
| Output signal (AC voltage) | 1V, 2V, 5V, 10V AC at nominal input current |
| Frequency range | 10Hz-200kHz |
| Dielectric strength | 3KV 50Hz/60Hz at 1 minute |
| Temperature range | -40°C to +55°C |
| Output | 2.5 meter cable with D01 connector or BNC |
| Max. voltage not insulated conductors | 600V |
| Standard | EN 61010-1, EN 61010-2-032, EN 61010-2-031 IEC60044-1, & IEC61869-2, 600V CAT III |
| Installation | Clamp type |
| Output mode | lead output(2.5m, 5m or 10m) |
| Connector | BNC, 4mm banana, signal cable(2 cores),customized |
| Range version | 100A, 200A, 400A, 500A, 1000A, 2000A, 3000A |
| Accuracy (3000A Range) | |
| 0-10A | ≤1% |
| 10-100 | ≤0.5% |
| 100-3000A | ≤0.2% |
| Phase Shift (3000A Range) | |
| 0-10A | ≤1° |
| 10-100 | ≤0.5° |
| 100-3000A | ≤0.2° |
| Mechanical parameters | |
| Dimensions (L × W × H)(mm) | 199 × 281 × 28 |
| Weight (g) | 1600 |
| Holding wire diameter (mm) | φ150 |
| Max. jaw opening (mm) | 150 |
| Jaw color | Red & grey |
| Material | PC+ABS, UL94 V0 |
SELECTION GUIDE
| Model | Rate current | Max current | Secondary current | Coil ratio | Burden resistance | Accuracy |
|---|---|---|---|---|---|---|
| S150-200 | 200A | 240A | 5A | 40:1 | 2.5VA | 0.5% |
| S150-300 | 300A | 360A | 5A | 60:1 | 2.5VA | 0.5% |
| S150-400 | 400A | 480A | 5A | 80:1 | 2.5VA | 0.5% |
| S150-500 | 500A | 600A | 5A | 100:1 | 2.5VA | 0.5% |
| S150-600 | 600A | 720A | 5A | 120:1 | 2.5VA | 0.5% |
| S150-800 | 800A | 960A | 5A | 160:1 | 2.5VA | 0.5% |
| S150-1000 | 1000A | 1200A | 5A | 200:1 | 2.5VA | 0.5% |
| S150-1500 | 1500A | 1800A | 5A | 300:1 | 2.5VA | 0.5% |
| S150-2000 | 2000A | 2400A | 5A | 400:1 | 2.5VA | 0.5% |
| S150-3000 | 3000A | 3600A | 5A | 600:1 | 2.5VA | 0.5% |
| S150A1-200 | 200A | 240A | 1A | 200:1 | customized | 0.2% |
| S150A1-300 | 300A | 360A | 1A | 300:1 | customized | 0.2% |
| S150A1-400 | 400A | 480A | 1A | 400:1 | customized | 0.2% |
| S150A1-500 | 500A | 600A | 1A | 500:1 | customized | 0.2% |
| S150A1-600 | 600A | 720A | 1A | 600:1 | customized | 0.2% |
| S150A1-800 | 800A | 960A | 1A | 800:1 | customized | 0.2% |
| S150A1-1000 | 1000A | 1200A | 1A | 1000:1 | customized | 0.2% |
| S150A1-1500 | 1500A | 1800A | 1A | 1500:1 | customized | 0.2% |
| S150A1-2000 | 2000A | 2400A | 1A | 2000:1 | customized | 0.2% |
| S150A1-3000 | 3000A | 3600A | 1A | 3000:1 | customized | 0.2% |
| S150A2-500 | 500A | 600A | 500mA | 1000:1 | customized | 0.2% |
| S150A2-600 | 600A | 720A | 500mA | 1200:1 | customized | 0.2% |
| S150A2-800 | 800A | 960A | 500mA | 1500:1 | customized | 0.2% |
| S150A2-1000 | 1000A | 1200A | 500mA | 2000:1 | customized | 0.2% |
| S150A3-800 | 800A | 960A | 400mA | 2000:1 | customized | 0.2% |
| S150A3-1000 | 1000A | 1200A | 400mA | 2500:1 | customized | 0.2% |
| S150A4-100 | 100A | 120A | 100mA | 1000:1 | customized | 0.2% |
| S150A4-250 | 250A | 300A | 250mA | 1000:1 | customized | 0.2% |
| S150A4-500 | 500A | 600A | 250mA | 2000:1 | customized | 0.2% |
| S150A4-1000 | 1000A | 1200A | 250mA | 4000:1 | customized | 0.2% |
| S150V5-100 | 100A | 120A | 1V | 1000:1 | customized | 0.2% |
| S150V5-200 | 200A | 240A | 1V | 1000:1 | customized | 0.2% |
| S150V5-300 | 300A | 360A | 1V | 1000:1 | customized | 0.2% |
| S150V5-400 | 400A | 480A | 1V | 1000:1 | customized | 0.2% |
| S150V5-500 | 500A | 600A | 1V | 1000:1 | customized | 0.2% |
| S150V5-600 | 600A | 720A | 1V | 1000:1 | customized | 0.2% |
| S150V5-800 | 800A | 960A | 1V | 1000:1 | customized | 0.2% |
| S150V5-1000 | 1000A | 1200A | 1V | 1000:1 | customized | 0.2% |
| S150V5-2000 | 2000A | 2400A | 2V | 1000:1 | customized | 0.2% |
| S150V5-3000 | 3000A | 3600A | 3V | 1000:1 | customized | 0.2% |
| S150V6-200 | 200A | 240A | 5V | 1000:1 | customized | 0.2% |
| S150V6-300 | 300A | 360A | 5V | 1000:1 | customized | 0.2% |
| S150V6-400 | 400A | 480A | 5V | 1000:1 | customized | 0.2% |
| S150V6-500 | 500A | 600A | 5V | 1000:1 | customized | 0.2% |
| S150V6-600 | 600A | 720A | 5V | 1000:1 | customized | 0.2% |
| S150V6-800 | 800A | 960A | 5V | 1000:1 | customized | 0.2% |
| S150V6-1000 | 1000A | 1200A | 5V | 1000:1 | customized | 0.2% |
| S150V6-2000 | 2000A | 2400A | 5V | 1000:1 | customized | 0.2% |
| S150V6-3000 | 3000A | 3600A | 5V | 1000:1 | customized | 0.2% |
| S150V8-200 | 200A | 240A | 10V | 1000:1 | customized | 0.2% |
| S150V8-300 | 300A | 360A | 10V | 1000:1 | customized | 0.2% |
| S150V8-400 | 400A | 480A | 10V | 1000:1 | customized | 0.2% |
| S150V8-500 | 500A | 600A | 10V | 1000:1 | customized | 0.2% |
| S150V8-600 | 600A | 720A | 10V | 1000:1 | customized | 0.2% |
| S150V8-800 | 800A | 960A | 10V | 1000:1 | customized | 0.2% |
| S150V8-1000 | 1000A | 1200A | 10V | 1000:1 | customized | 0.2% |
