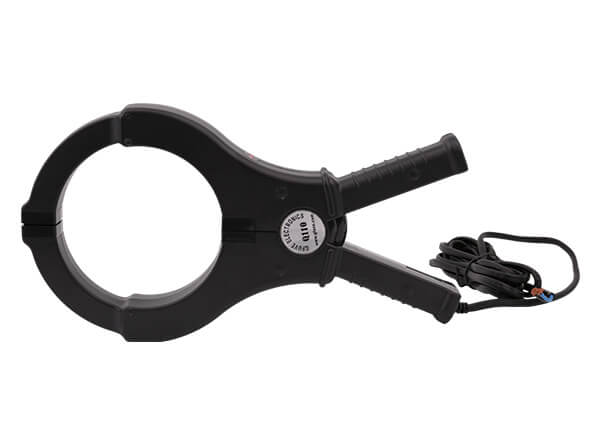

Q110 square jaw opening magnetic compact ac current clamp
The model Q110 clamp type current clamp is a high accuracy CT, the advanced design ensures enhanced linearity 0.2% and the jaw opening system provides enhanced safety. 110mm large jaw ensures it can measure up to 1500A AC current, Frequency range from 10Hz to 20KHz, ratio 1000:1, 2000:1 or 1000:5 etc. Improved ergonomic designed, Q110 clamp transformer suite for application on site. It can connect with phase detection analyzer, industrial control equipment, data recorder, oscilloscope, harmonic analyzer, electric power quality analyzer, high precision digital multi-meter & cable fault analysis etc. Conforms to EN 61010-2-032, 600V CAT III and IEC61869 & IEC60044-1 standard.
Quick Links: Download Catalogue
Features
- Measurement range of 1mA to 1500A AC;
- High precision 0.2% for current measurement;
- Low phase shift for power measurement;
- Frequency 10Hz-20kHz bandwidth;
- Improved ergonomic design & easy operation;
- High content permalloy core;
- Holding wire diameter: φ110mm;
- Conforms to EN 61010, 600V CAT III;
- Industrial design & beautiful appearance;
- Designed for recorders, loggers, oscilloscopes, power and harmonic meters;
- UL, CE CNAS mark;
Application
- Cable fault analysis;
- Large industrial loads;
- Power meter;
- Ground resistance tester;
- Energy meter tester (on site);
- Power quality analyzer;
- Power and harmonic meters;
- Power load monitoring;
- Data logging/recording;
- Phase volt-ampere meter;
- Measuring around cable bundles;
- Power quality monitoring;
- CT primary current detection;
- Oscilloscopes;
- Calibration instrument on site;
- Digital multi-meter;
- Multi-function energy meter;
Parameters
| Electrical parameters | |
|---|---|
| Ratio | 1000:1 or 2000:1 (customized) |
| Accuracy class | 0.2%, 0.5%, 1% |
| Primary current | 0-500A, 0-1000A, 0-1500A AC |
| Secondary current | 0-1A, 0-5A AC (customized) |
| Max. cont. input current | 1200A |
| Load capacity | ≤2.5VA or 20Ω |
| Over voltage category | CAT III 600V |
| Output signal (AC current) | 500mA, 1A, 5A AC at nominal input current |
| Output signal (AC voltage) | 333mV, 500mV, 1V, 5V AC at nominal input current |
| Frequency range | 10Hz-20KHz |
| Dielectric strength | 3KV 50Hz/60Hz at 1 minute |
| Temperature range | -20°C to +55°C |
| Output | 2.5 meter cable with D01 connector |
| Max. voltage not insulated conductors | 720V |
| Standard | EN 61010-1, EN 61010-2-032, EN 61010-2-031 IEC60044-1, & IEC61869-2, 600V CAT III |
| Installation | Clamp type |
| Output mode | Lead output (2.5m) |
| Connector | BNC, 4mm banana, signal cable (2 cores), customized |
| Mechanical parameters | |
| Dimensions (L x W x H)(mm) | 163 x 310 x 34 |
| Weight (g) | 900 |
| Holding wire diameter (mm) | φ110 |
| Max. jaw opening (mm) | 110 |
| Jaw color | Black |
| Material | PC+ABS, UL94 V0 |
SELECTION GUIDE
| Model | Rate current | Max current | Secondary | Coil ratio | Burden resistance | Accuracy |
|---|---|---|---|---|---|---|
| Q110A5-200 | 200A | 240A | 5A | 40:1 | 2.5VA | 0.5% |
| Q110A5-300 | 300A | 360A | 5A | 60:1 | 2.5VA | 0.5% |
| Q110A5-400 | 400A | 480A | 5A | 80:1 | 2.5VA | 0.5% |
| Q110A5-500 | 500A | 600A | 5A | 100:1 | 2.5VA | 0.5% |
| Q110A5-600 | 600A | 720A | 5A | 120:1 | 2.5VA | 0.5% |
| Q110A5-800 | 800A | 960A | 5A | 160:1 | 2.5VA | 0.5% |
| Q110A5-1000 | 1000A | 1200A | 5A | 200:1 | 2.5VA | 0.5% |
| Q110A1-100 | 100A | 120A | 1A | 100:1 | customized | 0.2% |
| Q110A1-200 | 200A | 240A | 1A | 200:1 | customized | 0.2% |
| Q110A1-300 | 300A | 360A | 1A | 300:1 | customized | 0.2% |
| Q110A1-400 | 400A | 480A | 1A | 400:1 | customized | 0.2% |
| Q110A1-500 | 500A | 600A | 1A | 500:1 | customized | 0.2% |
| Q110A1-600 | 600A | 720A | 1A | 600:1 | customized | 0.2% |
| Q110A1-800 | 800A | 960A | 1A | 800:1 | customized | 0.2% |
| Q110A1-1000 | 1000A | 1200A | 1A | 1000:1 | customized | 0.2% |
| Q110A2-500 | 500A | 600A | 250mA | 2000:1 | customized | 0.2% |
| Q110A2-1000 | 1000A | 1200A | 500mA | 2000:1 | customized | 0.2% |
| Q110A3-500 | 500A | 600A | 200mA | 2500:1 | customized | 0.2% |
| Q110A3-1000 | 1000A | 1200A | 400mA | 2500:1 | customized | 0.2% |
| Q110A4-250 | 250A | 300A | 250mA | 1000:1 | customized | 0.2% |
| Q110A4-500 | 500A | 600A | 500mA | 1000:1 | customized | 0.2% |
| Q110A4-1000 | 1000A | 1200A | 250mA | 4000:1 | customized | 0.2% |
| Q110V1-500 | 500A | 600A | 500mV | 1000:1 | customized | 0.2% |
| Q110V1-1000 | 1000A | 1200A | 1V | 1000:1 | customized | 0.2% |
| Q110V2-1000 | 1000A | 1200A | 5V | 1000:1 | customized | 0.2% |
| Q110V3-1000 | 1000A | 1200A | 10V | 1000:1 | customized | 0.2% |
| Notes: Can be customized current probe according to user requirements! | ||||||
