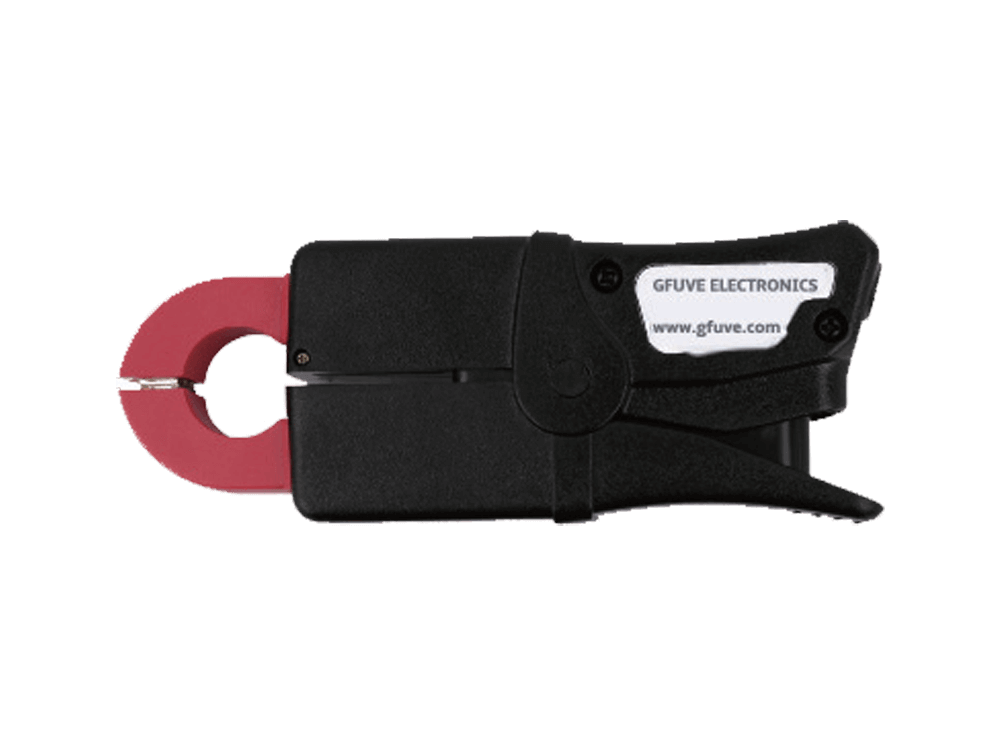

D20 2MHz frequency bandwidth 200A AC/DC current probe
The Model D20 AC/DC current sensor is a portable 100A/200Arms current clamp with insulated BNC output cable that can accurately measure AC or DC current waveforms. The unit has proportional mV output for direct readings on oscilloscopes from DC to 1MHz at -3dB. The D20 is power by a rechargeable multimeter battery or from a 9 V power signal cable. It is the perfect tool for most of the oscilloscopes.
DESCRIPTION
The D20 current sensor is a general purpose 200A AC/DC current probe designed for use with DMMs, oscilloscopes, power loggers, multimeters and energy meter calibration instruments that have a current input. It has a 1000:1 ratio and output of 10mV per amp measured in the jaw. The D20 AC/DC current sensor has an integral 2.5m lead terminated. The rounded jaw design on this current clamp makes it well-suited for power applications where high linearity 0.1% and low phase shift and wide frequency response up to 200kHz are important.
Applications
- Oscilloscopes;
- Power quality analyzer(PQA);
- power and harmonic meters;
- Energy meter calibrator;
- Measuring around cable bundles;
- Power load monitoring;
- Data logging/recording;
- Waveform analysis(oscilloscopes meter);
- Energy sub-meters;
- Battery load analysis;
- Power meter;
- Multimeter;
Features
- Measurement range 0-100A/0-200 AC/DC;
- Frequency response from DC to 200 KHz;
- Low phase shift for power measurement;
- High precision 0.1% for DC current measurement;
- 10mV/A output signal;
- Automatic compensation for earth's magnetic influence;
- Frequency 1MHz Bandwidth;
- Holding wire diameter: φ20mm;
- With harmonic measurement;
- Improved ergonomic design & easy operation;
- High content nickel metal permalloy core;
- Conforms to EN 61010, 600V CAT III;
- Designed for DMMs, oscilloscopes, recorders, loggers, harmonic meters;
- UL, CE, CNAS mark;
Parameters
| Electrical parameters | |
|---|---|
| Ratio | 1000: 1 or 2000:1 (customized) |
| Accuracy class | 0.2%, 0.5%, 1%, 2% |
| Primary current | 0 - 100A or 0-200A AC/DC |
| Signal output | 10mV/A or 1mV/A |
| Secondary voltage | 0 - 1V or 0 - 2V AC/DC |
| Max. Cont. Input current | 200A AC/DC |
| Load capacity | ≤20Ω , Standard 4Ω |
| Over voltage category | CAT III 600V |
| Linearity | 0.1% |
| Frequency range | 10Hz-1MHz |
| Frequency response time | ≤10us |
| Phase Shift at 50/60Hz | ±1° |
| Dielectric strength | 3KV 50Hz/60Hz at 1minute |
| Temperature range | -40°C to +55°C |
| Output | 2.5 meter cable with D01 or BNC connector, 4mm banana |
| Max. voltage not insulated conductors | 720 V |
| Power supply | 5V or 9V DC |
| Standard | EN 61010-1, EN 61010-2-032, EN 61010-2-031 IEC60044-1, & IEC61869-2, 600V CAT III |
| Installation | clamp type |
| Output mode | lead output(2.5m) |
| Pollution Degree | 2 |
| Protection | IP40 |
| Connector | BNC, 4mm banana, signal cable(4 cores),customized |
| Mechanical parameters | |
| Dimensions (L x W x H) (mm) | 53 x 138 x 28 |
| Weight (g) | 420 |
| Holding wire diameter (mm) | φ20 |
| Max. jaw opening (mm) | 20 |
| Jaw color | Red, black |
| Material | PC+ABS, UL94 V0 |
SELECTION GUIDE
| Model | Rate Current | Max Current | Secondary Current | Coil Ratio | Burden Resistance | Accuracy |
|---|---|---|---|---|---|---|
| D20V1-100 | 100A | 120A | 1V | 1000:1 | customized | 0.2% |
| D20V1-200 | 200A | 240A | 1V | 1000:1 | customized | 0.2% |
| D20V2-100 | 100A | 120A | 2V | 2000:1 | customized | 0.2% |
| D20V2-200 | 200A | 240A | 2V | 2000:1 | customized | 0.2% |
| D20V15-100 | 100A | 120A | 1V | 1000:1 | customized | 0.5% |
| D20V15-200 | 200A | 240A | 1V | 1000:1 | customized | 0.5% |
| D20V25-100 | 100A | 120A | 2V | 2000:1 | customized | 0.5% |
| D20V25-200 | 200A | 240A | 2V | 2000:1 | customized | 0.5% |
| D20V11-100 | 100A | 120A | 1V | 1000:1 | customized | 1% |
| D20V11-200 | 200A | 240A | 1V | 1000:1 | customized | 1% |
| D20V21-100 | 100A | 120A | 2V | 2000:1 | customized | 1% |
| D20V21-200 | 200A | 240A | 2V | 2000:1 | customized | 1% |
