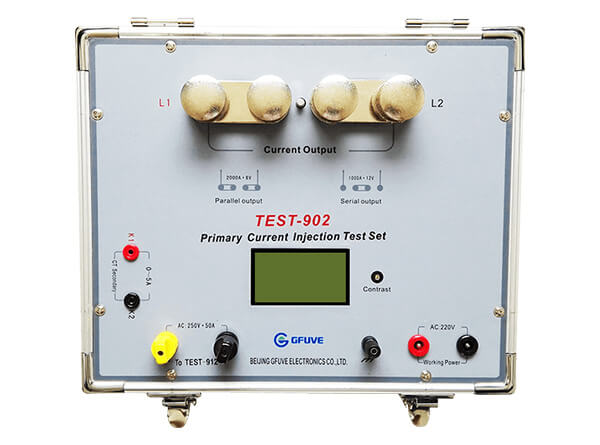

TEST-902 Primary current injection protection relay tester

protection relay tester

TEST-902 2000A primary current injection tester adopts 32bit ARM chip to control the output process and large capacity of toroidal transformer. It is equipped with LCD screen display current meter, also showed primary current value, secondary current value, current transformer turn ratio and circuit breaker of the action time. Aluminum alloy body with PC panel component the shell. TEST-902 primary current injection tester is mainly applied to test CT turn ratio and polarity in the power system, the contact resistance, protection relay, low voltage & high voltage circuit breaker protection test and high voltage generator test etc, which need large current on-site or in the lab.

Request a quote
Quick Links: Download Catalogue


Features

  • Portable designed;
  • High precision 0.5%;
  • Quick and easy to use;
  • With CT ratio test function;
  • With 6m large current cable;
  • Max current output up to 2200A;
  • Permanent current up to 2000 A, 12KVA;
  • Built-in digital timer resolution 1 ms;
  • Built-in digital ammeter 0.5% accuracy;
  • Made up of two units, control and power unit;
  • Thermal, short-circuit and overload protection;

APPLICATIONS

  • Switchgear Testing;
  • Ground Grid Testing;
  • Circuit Breaker Testing;
  • Protective Relay Testing;
  • Current Transformer Testing;
  • Recloser and Sectionalizers;
  • 2000A Primary injection tests;


Parameters

Electrical parameters　
Accuracy ±0.5%
Power Supply (AC) 220V±10%·50A, 50Hz/60Hz or
110V±10%·100A, 50Hz/60Hz
Current Output (AC) 2000A·6V or 1000A·12V
Capacity 12KVA
The current output waveform distortion ≤5%
Primary current　
Range 0-2200A
Resolution 0.1A
Accuracy <0.5%
Secondary measurement　
Range 0-6A
Resolution 0.001A
Accuracy <0.5%
Current duration　
2000A range 2000A    2-3minutes
1000A    3-6minutes
1000A range 1000A    2-3minutes
Continuous output 0-800A
With timer
Range 0.0001～999.999S
Resolution 0.001S
Accuracy <0.2% ±5 words
Standard
Standard IEC61010-1;IEC 61326-1
Communication port RS232
Cable length 4x6m, 95mm²
Mechanical parameters　
Dimensions (W×D×H) (mm) 360×300×295and320×300×300
Weight (kg) Control Host 35kg,
External voltage regulator weight 15kg
Structure Integrated or split optional
Environmental conditions　
Operating Temperature -10°C to 50°C
Storage Temperature -40°C to 70°C
Relative humidity ≤95%，on-condensing

Selection Guide

 Model ACCU
RACY		 Primary
current		 AMMETER
(0-6A)		 TIMER POWER INJECTION CURRENT TIME DIMENSION(W×D×H)(mm) WEIGHT REMARK
TEST-200 0.5% 0-250A YES YES 2KVA 200A: 2-3min;100A:3-6min 340×270×250 22.5KG Integrated structure
TEST-901 0.5% 0-1100A YES YES 5KVA 1000A: 2-3min;
500A:3-6min		 430×260×260 25KG Integrated structure
TEST-902 0.5% 0-2200A YES YES 12KVA 2000A:2-3min;
1000A:3-6min		 360×300×295 and 320×300×300 35KG+15KG Fission structure
TEST-903 0.5% 0-3300A YES YES 15KVA 3000A:2-3min;
1500A:3-6min		 380×350×360 and 340×290×420 48KG+42KG Fission structure
TEST-905 0.5% 0-5500A YES YES 25KVA 5000A:2-3min;
2500A:3-6min		 430×430×445 and 550×450×600 68KG+55KG Fission structure
