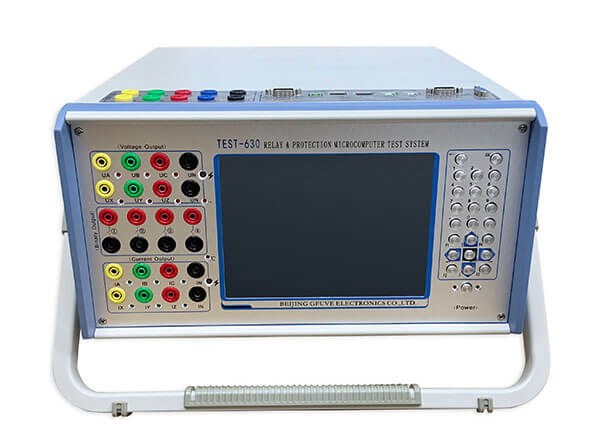

TEST-630 Six phase universal protection device relay test kit

relay test kit

TEST-630 six phase microcomputer protection relay test kit is a smart relay test equipment which offers all the characteristics and functions needed for protective relay testing, in a manual or automatic mode, designed for using on site or in the laboratory. It uses the latest generation of high-speed DSP digital signal processor as the core, dual channel 16 bit DAC, full fidelity high-performance linear amplifier, high output precision, good waveform and stable performance.


It is convenient to test the standby automatic switching device and microcomputer differential protection device, and to conduct targeted verification programs for various relays. The powerful function test software can provide complete sets of microcomputer protection and automatic test programs for automatic devices with multiple verification and search methods: line protection, differential protection, impedance protection, low cycle, synchronization, standby automatic switching, etc. All kinds of fault simulation programs can simulate and replay all kinds of faults, transient processes, system oscillations and reclosing actions actually on site.
TEST-630 relay test kit is a the most advanced six-phase relay tester available for type and field testing of electromechanical and digital protections of any kinds of relay. It have six phase current output and six phase voltage output, with eight pairs of binary input and four pairs of binary output, wide frequency output from 0 to 1050Hz, high precision and high stability. It is a ideal test tool for substation commission, acceptance testing and maintenance testing in smart grid.


  • Frequency output from 0 to 1050Hz;
  • With PC control software optional;
  • Auto test and manual test optional;
  • COMTRADE recording file fault recurrence wave;
  • 0-30A/phase, max 180A; 0-130V/phase, max 300V;
  • Six-channel current output, Six-channel voltage output;
  • Phase shift from 0° to 360.000° or -180.000° to 180.000°;
  • Eight pairs of binary input, Four pairs of binary output;
  • High precision and good unique linearity of power amplifier;
  • The test report can be easily derived from the USB port to print;
  • Panel embedded user-friendly buttons, and external keyboard and mouse;
  • Integration in 8 inches TFT color LCD, light weight and easy to carry;
  • High-precision DAC to 12 channel, simultaneously voltage and current output;
  • The newly designed software interface is fully consistent with the host machine operation;
  • Overcurrent, overvoltage, overload, short circuit and over-high temperature intelligent self-protection;
  • It can easily complete the protective device test of ABB, Siemens, Schneider, AREVA and other manufacturers;
  • Built-in high-speed and high-performance industrial computer embedded operating system, running stable and reliable, also can test;
  • Extensive testing capabilities: state sequence, IT features analog oscillation,setting group of test, differential protection test, harmonic test, distance protection test, fault playback, special tests etc;


  • Power plant;
  • Universities;
  • panel manufacturer;
  • Relay manufacturers;
  • Research institutes;
  • Electrical laboratory;
  • Electrical testing center;
  • Power engineering service company;
  • Power engineering commissioning company;
  • Electricity power bureau & power company;
  • Electrical Department of industrial and mining enterprises;

Test item

  • DC Test
  • I-T Test
  • U/I Test
  • Special Test
  • Harmonic Test
  • State Sequence
  • Oscillation Test
  • Fault Recurrence
  • Hardware Checkout
  • Setting Group Test
  • Differential Relay
  • Metering Instrument
  • Distance Protection
  • Power Direction Test
  • Synchronization Test
  • Frequency Protection
  • Low Voltage Protection
  • Differential Protection
  • Zero Sequence Protection
  • Impedance Characteristics


Electrical parameters
Power voltage AC220V±10% or AC110V±10%, 50/60Hz±10%
AC current output(Ia, Ib, Ic, Ix, Iy, Iz)
Phase current output (effective value) 6×0-30A or 3 × 0-60A
Maximum power output 520VA/phase
Maximum parallel current output (effective value) 0-180A
Long-term allowable working value of phase current (effective value) 0-10A
Rosolution 1mA
Allowable working time of maximum current >11s
Accuracy class <±0.2% , Typital 0.05%
AC voltage output(Ua,Ub,Uc,Ux,Uy, Yz)
Phase voltage output (effective value) 6 x 0-130V
Line voltage output (effective value) 0-260V
Maximum power output 70VA/phase
Rosolution 1mV
Accuracy class <±0.2% , Typital 0.05%
Power output
Accuracy class <±0.2% , Typital 0.05%
Frequency output
Output frequency 0-1050Hz
Frequency error <±0.001Hz
Phase angle output
Phase angle -180.000°-0-180.000°, 0.000°-360.000°
Phase error <±0.1°, Typital 0.05°
DC current output
Output range -10 to 10A or 6 x 0 to ±10A
Maximum power output 200VA
Accuracy class <±0.2% , Typital 0.05%
DC voltage output
Output range 0-300V or 6 x 0 to ±130V
Maximum output power  130VA
Accuracy class <±0.2% , Typital 0.05%
Binary input
Idle contact 1-20mA, 24V (DC)
Electric potential contact 250V/0.5A (DC)
Binary input number 8PCS
Binary output
Idle contact 250V/0.5A (DC)
Binary output number 4PCS
Waveform distortion <±0.3% (fundamental wave)
Time measurement 0.1ms-999999.999s
Time error <40µs
Superposed harmonic wave 0-21times
Auxiliary DC voltage 110V or 220V Optional
GPS Optional
LCD 8 inch color TFT LCD
Key 24pcs key
Communication port RS232, USB, VGA, 10/100M LAN
Mechanical parameters
Dimensions (L×W×H) (mm) 360×195×365
Weight (kg) 18.6
Environmental conditions
Operation temperature 0°C to 50°C
Storage temperature -25°C to 70°C
Humidity range Relative humidity 5 ... 95 %, non-condensing

Testing ansi standard device

ANSI Standard Device
List of Device Numbers Relay or Circuit Rreaker FUNCTION
2 Time Delay Starting or Closing Relay Yes
21 Distance Relay Yes
24 Over-Excitation Relay Yes
25 Synchronizing or Synchronism-Check Device Yes
27/27N Undervoltage Relay Yes
30 Annunciator Relay Yes
32 Directional Power Relay Yes
36 Polarity or Polarizing Voltage Devices Yes
37 Undercurrent or Underpower Relay Yes
40 Field Relay Yes
46 Reverse-phase or Phase-Balance Current Relay Yes
47 Phase-Sequence Voltage Relay Yes
50/50N Instantaneous Overcurrent or Rate of Rise, Relay Yes
51/51N AC Time Overcurrent Relay Yes
52 AC Circuit Breaker Yes
53 Exciter or DC Generator Relay Yes
55 Power Factor Relay Yes
56 Field Application Relay Yes
58 Rectification Failure Relay Yes
59/59N Overvoltage Relay Yes
60 Voltage or Current Balance Relay Yes
61 Machine Split Phase Current Balance Yes
62 Time-Delay Stopping or Opening Relay Yes
64 Ground (Earth) Detector Relay Yes
67/67N AC Directional Overcurrent Relay Yes
68 Blocking Relay Yes
74 Alarm Relay Yes
76 DC Overcurrent Relay Yes
78 Phase-Angle Measuring or Out-of-Step Protective Relay Yes
79 AC Reclosing Relay Yes
81/81U/O/R Frequency Relay Yes
82 DC Reclosing Relay Yes
85 Carrier or Pilot-Wire Receiver Relay Yes
86 Lockout Relay Yes
87 Differential Protective Relay Yes
91 Voltage Directional Relay Yes
92 Voltage and Power Directional Relay Yes
94 Tripping Relay Yes
