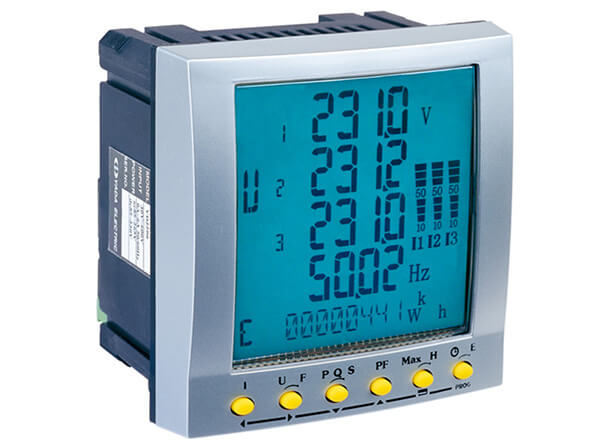

FU2200 RS485 port three phase stop digital power meter
FU2200 industrial panel RS485 power meter is a powerful three phase stop digital power meter, it can measure and display all the electrical parameters as well as harmonics ratio of current and voltage. Four modules can be plugged-in together: RS-485 communication, digital input/output, energy pulse and DC 4-20mA analog output module, in order to meet all kinds of demands. This model FU2200 RS485 digital power meter be used in various energy management system, residential power monitoring, control system, industrial automation, smart buildings etc. It can as 3×220/380V, 3×5A, 0.5s three phase energy meter.
Quick Links: Download Catalogue
Application
- Hotel;
- Airport;
- Factory;
- Power plant;
- Energy meter;
- Industrial system;
- Intelligent building;
- Power quality analysis;
- Power monitoring system;
- Data transmission center;
- Photovoltaic power station;
- Mobile communication company;
- Medium and low voltage systems;
- Commercial, industrial, utility;
- Electric energy metering cabinet;
- Low voltage distribution cabinet;
- Industrial and mining enterprises;
- High voltage distribution cabinet;
- Energy consumption monitoring system;
- Electric energy metering of photovoltaic power station;
- Metering of distribution feeders, transformers, generators, capacitor banks and motors;
Features
- High accuracy 0.5s/0.5%;
- 5-line LCD with backlight;
- Max/Min Log with Timestamp;
- Multiple preset value alarms;
- PT,CT ratio can be programmable;
- RS485 communication module optional;
- Direct voltage input up to 600V / AC;
- DC 4-20ma analog output module optional;
- Profibus communication module optional;
- Field configurable 5A/1A CT input by key;
- Electric energy pulse output module optional;
- Time division multiple rate, real-time clock;
- Visual display bar chart indicates full load rate;
- Remote signaling and remote control module optional;
- 96×96mm panel installation, 92×92mm trepanning dimension;
- Measure the harmonic content of voltage and current of each phase;
- There are six wiring modes: 3P4W, 3P4W balance, 3P3W, 3P3W balance, 1P2W and 1P3W;
- Measure phase voltage, line voltage, current, power, power factor, frequency, positive and negative active energy metering and positive and negative reactive energy metering;
Parameters
| Electrical parameters | |
|---|---|
| Power supply (AC/DC) | AC85-265V / DC85-330V, DC18-90V (optional) Power consumption: <3VA |
| Class | 0.5S, 0.5, 1.0 |
| Measurement parameters | Voltage (Ph-N); Voltage (Ph-Ph); Current; Frequency; PF; Active Power(W); Reactive Power(Q) ; Apparent Power(S), 2nd-31st harmonics, Energy |
| Harmonics | Total harmonics ratio of phase-voltage Total harmonics ratio of current 2nd-31st harmonics ratio of Phase-voltage (RS485 output) 2nd-31st harmonics ration of current (RS485 output) Voltage THD: 0-30% Current THD: 0-30% |
| Maximum value | Max. value for voltage/current Max. value for active power Max. value for reactive power Max. value for apparent power |
| Computation | Forward active power energy Reverse active power energy Forward active power energy Reverse reactive power energy |
| Measuring range | 30-600V, 0-6A, 45-65Hz, -1 ~ 0 ~ 1 |
| Measuring accuracy | Frequency: 0.1% Electric energy: 0.5S, 0.5%, 1.0% Voltage : 0.2%±0.1V Current : 0.2%±0.001A Power : 0.5% ±0.4W Power factor : 0.5% ±0.001 |
| Display | Wide screen angle; Light blue back-lit LCD display; 5 display figures; 6 operation keys. |
| Communication | Support RS485 port with expansion module FM-485, Modbus-RTU communication protocol. 32 (128) meters are connected as a network. |
| Programmable | Measuring system: 3P4W/3P3W etc. Transformation ratio : PT,CT. Communication: Address: 1-247; Baud: 1200~19200; Parity bit: N/E/O Energy: reset |
| Energy pulse (expansion) | FM-E2 provides active & reactive energy pulse output. 6 pulse parameters can be choose. Range: 0.1-10000kWh/kvarh; Dry contact output (1AX100V). |
| Data collection (expansion) | Each FM-K2 module can collect 2-ways dry contact counting |
| Control (expansion module) | Each FM-K2 provides 2 relay contact outputs, which can be controlled by communication or the measured parameters. |
| Analog output (expansion module) | Each FM-A20 module provides 2 ways of DC 4-20mA outputs, the function-relations can be set according to the measured parameters. |
| Connection mode | 3P4W, 3P4W BAL, 3P3W, 3P3W BAL, 1P2W, 1P3W |
| Standard | EN610101:2010; EN61010-2-030:2010; EN61326-1:2013; EN61000-3-2:2014; EN61000-3-3:2013; IEC61000-4; IEC61557-12; IEC60068-2-1/2/30 IEC 62052-11; IEC 62053-21; IEC 62053-22 |
| Mechanical parameters | |
| Dimensions (mm) | Mounting panel: 96x96 Thickness: 20 Depth: 60 (without expansion module) 80 (without expansion module) |
| Weight | 550g |
| Mounting | Panel mounting Trepanning: 92x92mm |
| Environmental conditions | |
| Temperature | -25 to +50°C |
| Humidity | 20%-95%RH, Without condensation |
