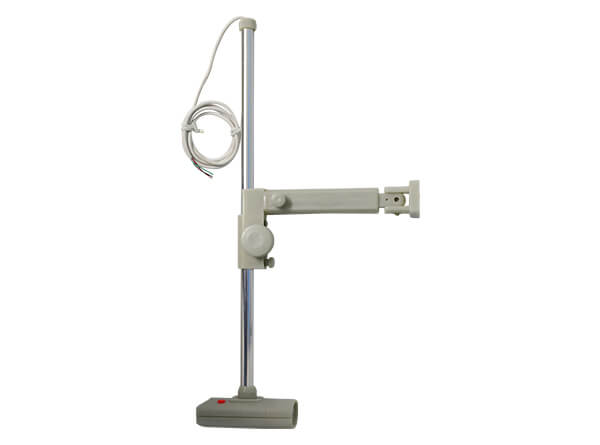

GF12G Flexible Rack Scanning Head for Energy Meter Test Bench

universal optical scanning head

The GF12G photoelectric scanning head is suitable for meter test bench of scanning the marks of mechanical rotating disc meters or the detection of light emitting diodes (LED's) of electronic meters, and also as a manual switch. Three mode of operation is selectable via a switch. It has the characteristics of high-precision acquisition, high-frequency acquisition, wide range acquisition, and high sensitivity, and is suitable for on-site calibration instruments and calibration devices for electric energy meters. This product is compatible with devices adhering to the European standard IEC 62056-21 (IEC 1107).

Request a quote
Quick Links: Download Catalogue


Functions & Features

  • Adopting a telescopic bracket design, suitable for various types of electric energy meters with different casings;
  • Multiple connection methods, suitable for various indoor and outdoor occasions, such as electric meter inspection devices and on-site calibration instruments;
  • Integrating three working modes: electronic and mechanical meters, as well as manual switches, compatible with electronic meters and mechanical pulse acquisition, with one click switching;
  • The "crosshair" is used for aiming, making it easy to adjust the position of the light and achieving high accuracy;
  • Various LED flash pulser color detection;
  • Three color LED status indicator, mechanical watch red light on, electronic watch green light on, manual switch orange light on, strong visibility;
  • The photoelectric head has high sensitivity and strong adaptability, and can automatically adapt to changes in light intensity on site;
  • The sampling speed can reach up to 3kHz, fully meeting the sampling requirements of various electric meters;


Parameters

Electrical parameters　
Induction wavelength 400-1000nm
Pulse width Not less than 0.2 milliseconds
Working voltage 3.3-12V, 3.3V, 5V, 12V DC
Working current ≤13.5mA
Sampling distance 25-45mm
Jack column Yes
LED lamp Red, green, orange
Key 1pc
Output signal (high) ≥4.5V
Output signal (low) ≤0.2V
Shell material ABS
Shell color Light grey
Size (with flexible bracket) 80mm×40mm×25mm, bracket length: 400mm
Weight 320g
Signal line length 1m, 2m, 3m, customized
Protection level IP54
Working temperature -40°C to 85°C
Working humidity 5%-85%RHD
