L-3P phase sequence meter

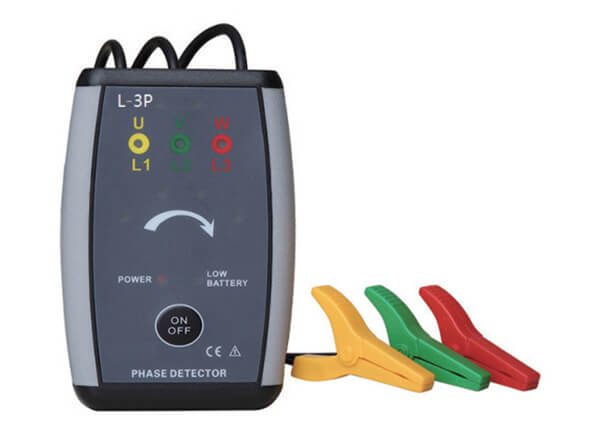

L-3P phase sequence meter is a major breakthrough in traditional phase sequence detection methods. The traditional phase sequence detection must be to open the three-phase wire terminal, the phase sequence meter of the three exposed clips or test pins are connected to the exposed three fire lines. It uses clamp-type non-contact inductive measurement. It does not need to open the wire, and does not need to touch the high voltage exposed live wire. It can directly detect the phase sequence by sandwiching the three super induction high-insulation clamps to clamp the three-phase live wire insulation sheath. It is safe and reliable, and is widely used in electric power, communication, meteorology, railway, oil field, construction, measurement, scientific research and teaching units, industrial and mining enterprises and other fields. At the same time, the acoustooptic indicates the normal or reverse phase state of the phase sequence of the three-phase power supply.
Functions
- Phase detection (normal phase, reverse phase)
- Live line inspection
- Simple electricity inspection
- Phase loss judgment
- Circuit breaker search
- Breakpoint location
- Line maintenance
Features
- Non-contact detection L1, L2, L3
- Auto check
- Wide detection voltage range
- With luminous beep
- AC 70~4000V
- Test quickly
- Check all kinds of electric device’s phase sequence
- This new design structure
- Powered by 9V cell batteries
Parameters
| Electrical parameters | |
|---|---|
| Power | 9V battery, continuous use time is about 70 hours. |
| Measure mode | Non-contact clipping method |
| Wire position | The measured wire is in the center of the jaw |
| Frequency | 50Hz/60Hz automatic identification |
| Live electricity range | AC 70-4000V, 45-65Hz (sine wave continuous input), conducted electrostatic detection |
| Measuring the highest voltage | AC 4000V |
| Clamp wire size | Outside diameter ø1.5mm-ø48mm |
| Display | [Positive phase] 4pcs phase detector lights are turned on in a clockwise direction; [Reverse phase] 4pcs phase detection lights are turned on counterclockwise; [Live electricity] L1, L2, L3 lights in the voltage setting range; [Lack of phase] L1 or L2 or L3 lights are not lit; [Open circuit] L1 or L2 or L3 lights are not lit; |
| Beep | [Positive phase] The instrument emits intermittent short beep; [Reverse phase] The instrument emits a continuous long beep. |
| Battery check | After the power is turned on, the power indicator is on; the battery is low; the low battery lamp is on. |
| Clamp lead length | 0.6m |
| Automatic shut-down | After about 6 minutes of power on, the meter automatically shuts down to reduce battery consumption. |
| Battery voltage | When the battery voltage drops to about 5.2V, the battery voltage is low symbol to remind to replace the battery |
| Maximum rated power | 300mVA |
| Insulation strength | 3.7kVrms |
| Suitable for safety regulations | EN61010-1：2001, EN61010-031：2002, pollution grade 2, CAT Ⅲ(600V), Instant overvoltage 6000V. |
| Mechanical parameters | |
| Dimensions | 117.6mm×81mm×25mm (L×W×T) |
| Weight (g) | 260 (with battery) |
| Environmental conditions | |
| Operating temperature | -15°C to +55°C |
| Storage Temperature | -20°C to +65°C |
| Relative humidity | 0%-95% RH |
