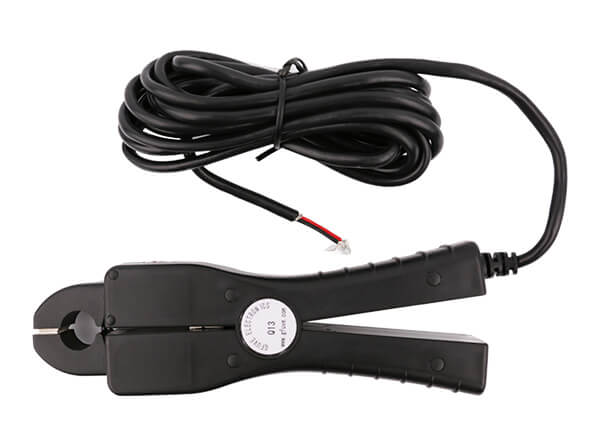

Q13 CE UL Europe cheap ma output Split Core AC Current Probe
The Q13 split core current probe is a high accuracy mini probe for measurements to 120A AC. This current clamp probe uses a special magnetic core to provide higher accuracy 0.1% and lower phase shift, the frequency range is 10Hz to 200kHz, ratio 1000:1, 2000:1 or 2500:1 etc. It can output 1mA/A, 1mV/A or 10mV/A etc. The Q13 Series clamp current probe is an excellent probe to be used in power and low level current measurement applications. This model Q13 current probe clamp has been used for power analyzer, energy meter calibrator, Oscilloscopes etc high precision instruments.
Quick Links: Download Catalogue
Features
- Small, compact size;
- Harmonics measurement function;
- 10Hz to 200kHz response;
- Measurement range of 1mA to 120A AC;
- Improved ergonomic design and easy operation;
- High content nickel metal core;
- Low phase shift for power measurement;
- Jaw opening accommodates conductors up to 13mm diameter;
- Designed for DMMs, loggers, recorders and oscilloscopes;
- 1mA/A AC output signals;
- Designed to EN 61010, 600V CAT III safety standard;
- UL, CE, CNAS mark;
Application
- Energy meter calibrator (on site);
- Power quality analyzer;
- Power and harmonic meters;
- Data logging/recording;
- Power load monitoring;
- Oscilloscopes meter;
- Waveform analysis；
- Measuring around cable bundles;
- Phase angle meter;
- Power meter;
- Power quality monitoring;
- CT secondary current detection;
- Digital multi-meter;
- Measuring around cable bundles；
- Multimeter;
- Energy sub-meters;
- Multi-function energy meter;
Parameters
| Electrical parameters | |
|---|---|
| Ratio | 1000: 1, 2000:1 or 2500:1 (customized) |
| Accuracy class | 0.1%, 0.2% |
| Primary current | 0 - 5A AC, 0 - 10A AC, 0 - 100A AC |
| Secondary current | 0 - 5mA AC , 0 - 10mA AC , 0 - 100mA AC (customized) |
| Max. Cont. Input current | 120A |
| Load capacity | ≤20Ω , Standard 4Ω |
| Over voltage category | CAT III 600V |
| Output signal (AC current) | 100mA AC at nominal input current |
| Output signal (AC voltage) | 100mV,1V AC at nominal input current |
| Signal ratio | 1mA/A, 1mV/A, 10mV/A, 100mV/A |
| Frequency range | 40Hz-200KHz |
| Dielectric strength | 3KV 50Hz/60Hz at 1 minute |
| Temperature range | -20°C to +55°C |
| Output | 2.5 meter cable with D01 connector |
| Max. voltage not insulated conductors | 720 V |
| Standard | EN 61010-1, EN 61010-2-032, EN 61010-2-031 IEC60044-1, & IEC61869-2, 600V CAT III |
| Installation | Clamp type |
| Output mode | Lead output (2.5m) |
| Connector | BNC, 4mm banana, Audio plug,customized |
| Mechanical parameters | |
| Dimensions (L x W x H) (mm) | 45 x 160 x 25 |
| Weight (g) | 300 |
| Holding wire diameter (mm) | φ13 |
| Max. jaw opening (mm) | 13 |
| Jaw color | Black |
| Material | PC+ABS+Polycarbonate, UL94 V0 |
SELECTION GUIDE
| Model | Rate Current | Max Current | Secondary | Coil Ratio | Burden Resistance | Accuracy |
|---|---|---|---|---|---|---|
| Q13-5-1 | 5A | 6A | 5mA | 1000:1 | customized | 0.1% |
| Q13-5-2 | 5A | 6A | 2.5mA | 2000:1 | customized | 0.1% |
| Q13-5-3 | 5A | 6A | 2mA | 2500:1 | customized | 0.1% |
| Q13-10-1 | 10A | 12A | 10mA | 1000:1 | customized | 0.1% |
| Q13-10-2 | 10A | 12A | 5mA | 2000:1 | customized | 0.1% |
| Q13-10-3 | 10A | 12A | 4mA | 2500:1 | customized | 0.1% |
| Q13-20-1 | 20A | 24A | 20mA | 1000:1 | customized | 0.1% |
| Q13-20-2 | 20A | 24A | 10mA | 2000:1 | customized | 0.1% |
| Q13-100-1 | 100A | 120A | 100mA | 1000:1 | customized | 0.1% |
| Q13-100-2 | 100A | 120A | 50mA | 2000:1 | customized | 0.1% |
| Q13-100-3 | 100A | 120A | 40mA | 2500:1 | customized | 0.1% |
| Q13-V5-1 | 5A | 50A | 50mV | 1000:1 | customized | 0.1% |
| Q13-V5-2 | 5A | 6A | 500mV | 1000:1 | customized | 0.1% |
| Q13-V5-3 | 5A | 6A | 1V | 1000:1 | customized | 0.1% |
| Q13-V10-1 | 10A | 50A | 100mV | 1000:1 | customized | 0.1% |
| Q13-V10-2 | 10A | 12A | 1V | 1000:1 | customized | 0.1% |
| Q13-V10-3 | 10A | 12A | 5V | 1000:1 | customized | 0.1% |
| Q13-V100-1 | 100A | 120A | 100mV | 1000:1 | customized | 0.1% |
| Q13-V100-2 | 100A | 120A | 1V | 1000:1 | customized | 0.1% |
| Q13-V100-3 | 100A | 120A | 5V | 1000:1 | customized | 0.1% |
| Q13-5-12 | 5A | 6A | 5mA | 1000:1 | customized | 0.2% |
| Q13-5-22 | 5A | 6A | 2.5mA | 2000:1 | customized | 0.2% |
| Q13-5-32 | 5A | 6A | 2mA | 2500:1 | customized | 0.2% |
| Q13-10-12 | 10A | 12A | 10mA | 1000:1 | customized | 0.2% |
| Q13-10-22 | 10A | 12A | 5mA | 2000:1 | customized | 0.2% |
| Q13-10-32 | 10A | 12A | 4mA | 2500:1 | customized | 0.2% |
| Q13-20-12 | 20A | 24A | 20mA | 1000:1 | customized | 0.2% |
| Q13-20-22 | 20A | 24A | 10mA | 2000:1 | customized | 0.2% |
| Q13-100-12 | 100A | 120A | 100mA | 1000:1 | customized | 0.2% |
| Q13-100-22 | 100A | 120A | 50mA | 2000:1 | customized | 0.2% |
| Q13-100-32 | 100A | 120A | 40mA | 2500:1 | customized | 0.2% |
| Q13-V5-12 | 5A | 50A | 50mV | 1000:1 | customized | 0.2% |
| Q13-V5-22 | 5A | 6A | 500mV | 1000:1 | customized | 0.2% |
| Q13-V5-32 | 5A | 6A | 1V | 1000:1 | customized | 0.2% |
| Q13-V10-12 | 10A | 50A | 100mV | 1000:1 | customized | 0.2% |
| Q13-V10-22 | 10A | 12A | 1V | 1000:1 | customized | 0.2% |
| Q13-V10-32 | 10A | 12A | 5V | 1000:1 | customized | 0.2% |
| Q13-V100-12 | 100A | 120A | 100mV | 1000:1 | customized | 0.2% |
| Q13-V100-22 | 100A | 120A | 1V | 1000:1 | customized | 0.2% |
| Q13-V100-32 | 100A | 120A | 5V | 1000:1 | customized | 0.2% |
| Notes: Can be customized current probe according to user requirements! | ||||||
