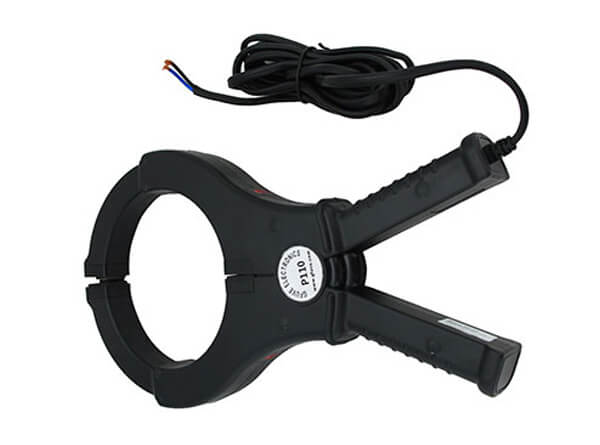

P110 1000A Cable fault Analysis Clamp Current Transformer
The P110 is a high performance AC current transformer Clamp with excellent transformation and low phase shift. The high quality magnetic permalloy core and uniform windings provide for accurate measurements up to 1000AAC/250AAC/600AAC. The "ring type" jaw permits good magnetic conduction and cable positionings. Provide excellent RMS capabilities and reliable signal reproduction. It is well suited for power quality applications where high accuracy and low phase shift along with wide frequency from 10Hz to 2MHz are important.
DESCRIPTION
Measurement range is 1mA to 1200A. The P110 is a general purpose 1000A AC current probe designed for use with DMMs, cable fault analysis and loggers instruments that have a current input. It has a 1000:1 ratio and output of 1mA per amp or 1mV per amp measured in the jaw. The P110 has an integral 2.5m or 5m lead terminated. The rounded jaw design on this probe makes it well-suited for cable fault analysis applications where high accuracy and low phase shift and wide frequency.
Applications
- Cable Fault Analysis
- Power quality analyzer(PQA)
- power and harmonic meters
- Measuring around cable bundles
- Power load monitoring
- Earth resistance meter
- Large industrial loads
Features
- Measurement range of 1mA to 1200A AC;
- 1mA/A or 1mV/A signal output;
- Improved ergonomic design & easy operation;
- High content nickel metal permalloy core;
- Frequency 10-2MHz;
- Holding wire diameter: φ110mm;
- Conforms to EN 61010, 600V CAT III;
- Transformation ratio: 1000:1, 1000:5;
- Low phase shift for power measurement;
- Ergonomic design;
- Designed for DMMs, recorders, loggers, power and harmonic meters, oscilloscopes;
- UL, CE CNAS mark;
Parameters
| Electrical parameters | |
|---|---|
| Ratio | 1000: 1 or 2000:1 (customized) |
| Accuracy class | 0.1%, 0.2%, 0.5%, 1% |
| Primary current | 0 - 1000A AC |
| Secondary voltage | 0-10V AC (customized) |
| Max. Cont. Input current | 1200A |
| Over voltage category | CAT III 600V |
| Output signal (AC current) | 250mA, 500mA,1A,5A AC at nominal input current |
| Output signal (AC voltage) | 1V, 5V, 10V AC at nominal input current |
| Frequency range | 40Hz-2000Hz |
| Dielectric strength | 3KV 50Hz/60Hz at 1 minute |
| Temperature range | '-40°C to +55°C |
| Output | 2.5 meter cable with D01 connector |
| Max. voltage not insulated conductors | 600 V |
| Standard | EN 61010-1, EN 61010-2-032, IEC60044-1, IEC61869-2 |
| Installation | clamp type |
| Output mode | lead output(2.5m, 5m or 10m) |
| Mechanical parameters | |
| Dimensions (L x W x H) (mm) | 163 x 310 x 34 |
| Weight (g) | 900 |
| Holding wire diameter (mm) | φ110 |
| Max. jaw opening (mm) | 110 |
| Jaw color | Black |
| Material | PC+ABS, UL94 V0 |
Technical parameters
| Model | Rate Current | Max Current | Secondary Current | Coil Ratio | Burden Resistance | Accuracy |
|---|---|---|---|---|---|---|
| P110-500 | 500A | 600A | 5A | 100:1 | 2.5VA | 0.5% |
| P110-600 | 600A | 720A | 5A | 120:1 | 2.5VA | 0.5% |
| P110-800 | 800A | 960A | 5A | 160:1 | 2.5VA | 0.5% |
| P110-1000 | 1000A | 1200A | 5A | 200:1 | 2.5VA | 0.5% |
| P1101-200 | 200A | 240A | 1A | 200:1 | customized | 0.2% |
| P1101-300 | 300A | 360A | 1A | 300:1 | customized | 0.2% |
| P1101-400 | 400A | 480A | 1A | 400:1 | customized | 0.2% |
| P1101-500 | 500A | 600A | 1A | 500:1 | customized | 0.2% |
| Q1101-600 | 600A | 720A | 1A | 600:1 | customized | 0.2% |
| P1101-800 | 800A | 960A | 1A | 800:1 | customized | 0.2% |
| P1101-1000 | 1000A | 1200A | 1A | 1000:1 | customized | 0.1% |
| P1102-500 | 500A | 600A | 500mA | 1000:1 | customized | 0.1% |
| P1102-600 | 600A | 720A | 500mA | 1200:1 | customized | 0.1% |
| P1102-800 | 800A | 960A | 500mA | 1500:1 | customized | 0.1% |
| P1102-1000 | 1000A | 1200A | 500mA | 2000:1 | customized | 0.1% |
| P1103-800 | 800A | 960A | 400mA | 2000:1 | customized | 0.1% |
| P1103-1000 | 1000A | 1200A | 400mA | 2500:1 | customized | 0.1% |
| P1104-250 | 250A | 300A | 250mA | 1000:1 | customized | 0.1% |
| P1104-500 | 500A | 600A | 250mA | 2000:1 | customized | 0.1% |
| P1104-1000 | 1000A | 1200A | 250mA | 4000:1 | customized | 0.1% |
| P1105-200 | 200A | 240A | 1V | 1000:1 | customized | 0.1% |
| P1105-300 | 300A | 360A | 1V | 1000:1 | customized | 0.1% |
| P1105-400 | 400A | 480A | 1V | 1000:1 | customized | 0.1% |
| P1105-500 | 500A | 600A | 1V | 1000:1 | customized | 0.1% |
| P1105-600 | 600A | 720A | 1V | 1000:1 | customized | 0.1% |
| P1105-800 | 800A | 960A | 1V | 1000:1 | customized | 0.1% |
| P1105-1000 | 1000A | 1200A | 1V | 1000:1 | customized | 0.1% |
| P1106-200 | 200A | 240A | 5V | 1000:1 | customized | 0.1% |
| P1106-300 | 300A | 360A | 5V | 1000:1 | customized | 0.1% |
| P1106-400 | 400A | 480A | 5V | 1000:1 | customized | 0.1% |
| P1106-500 | 500A | 600A | 5V | 1000:1 | customized | 0.1% |
| P1106-600 | 600A | 720A | 5V | 1000:1 | customized | 0.1% |
| P1106-800 | 800A | 960A | 5V | 1000:1 | customized | 0.1% |
| P1106-1000 | 1000A | 1200A | 5V | 1000:1 | customized | 0.1% |
| P1108-200 | 200A | 240A | 10V | 1000:1 | customized | 0.1% |
| P1108-300 | 300A | 360A | 10V | 1000:1 | customized | 0.1% |
| P1108-400 | 400A | 480A | 10V | 1000:1 | customized | 0.1% |
| P1108-500 | 500A | 600A | 10V | 1000:1 | customized | 0.1% |
| P1108-600 | 600A | 720A | 10V | 1000:1 | customized | 0.1% |
| P1108-800 | 800A | 960A | 10V | 1000:1 | customized | 0.1% |
| P1108-1000 | 1000A | 1200A | 10V | 1000:1 | customized | 0.1% |
